Total Light® Old Faithful Brass Up Light

Product Overview

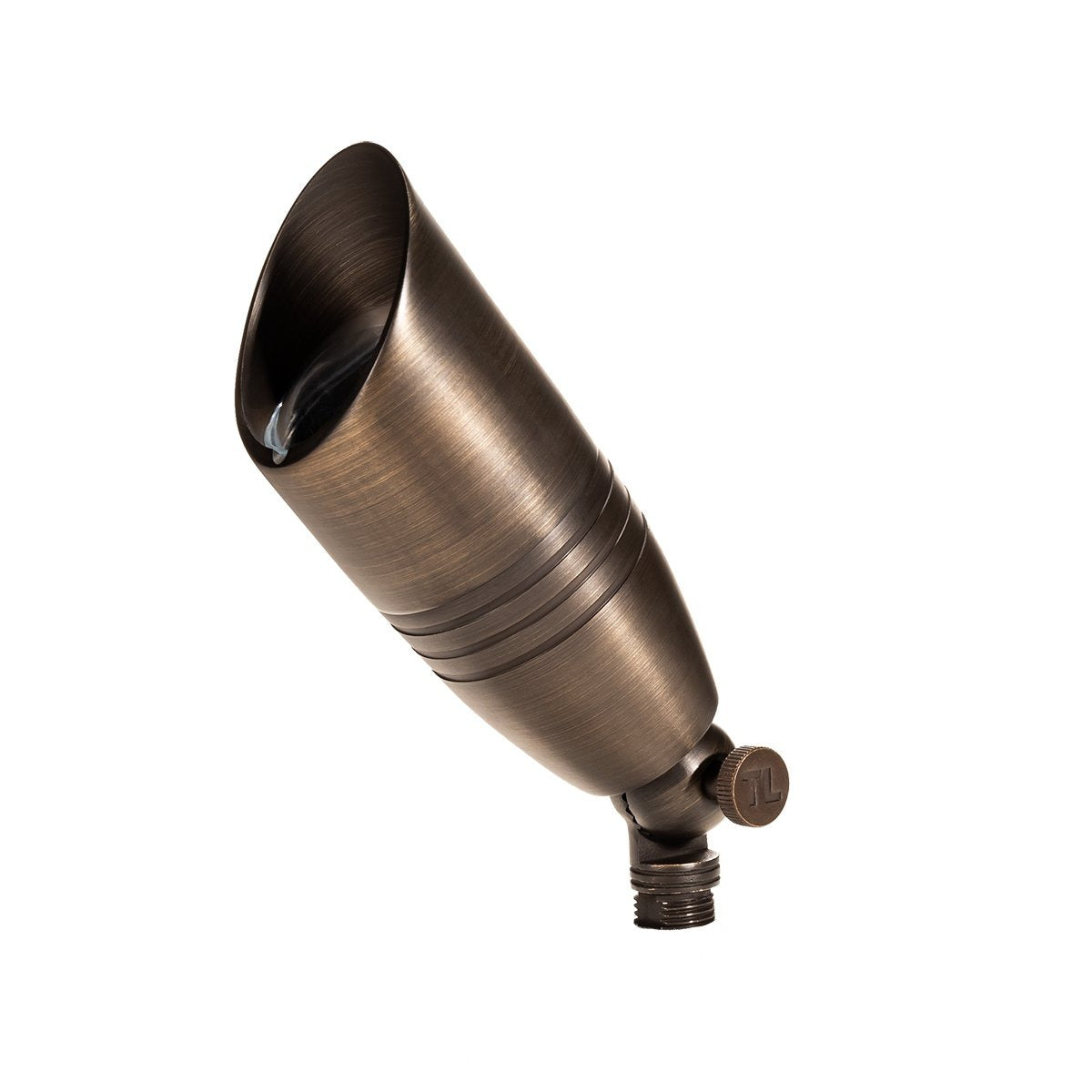

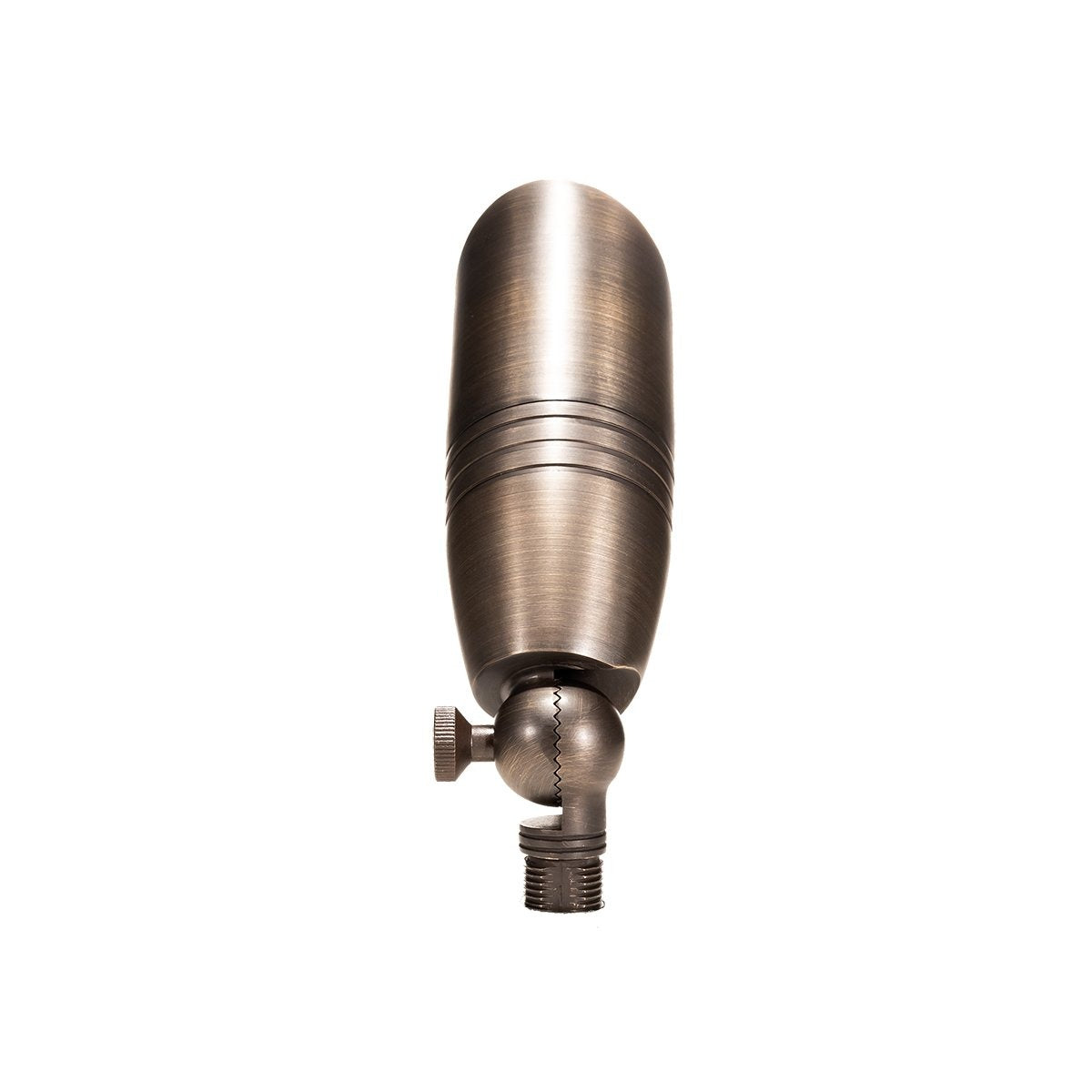

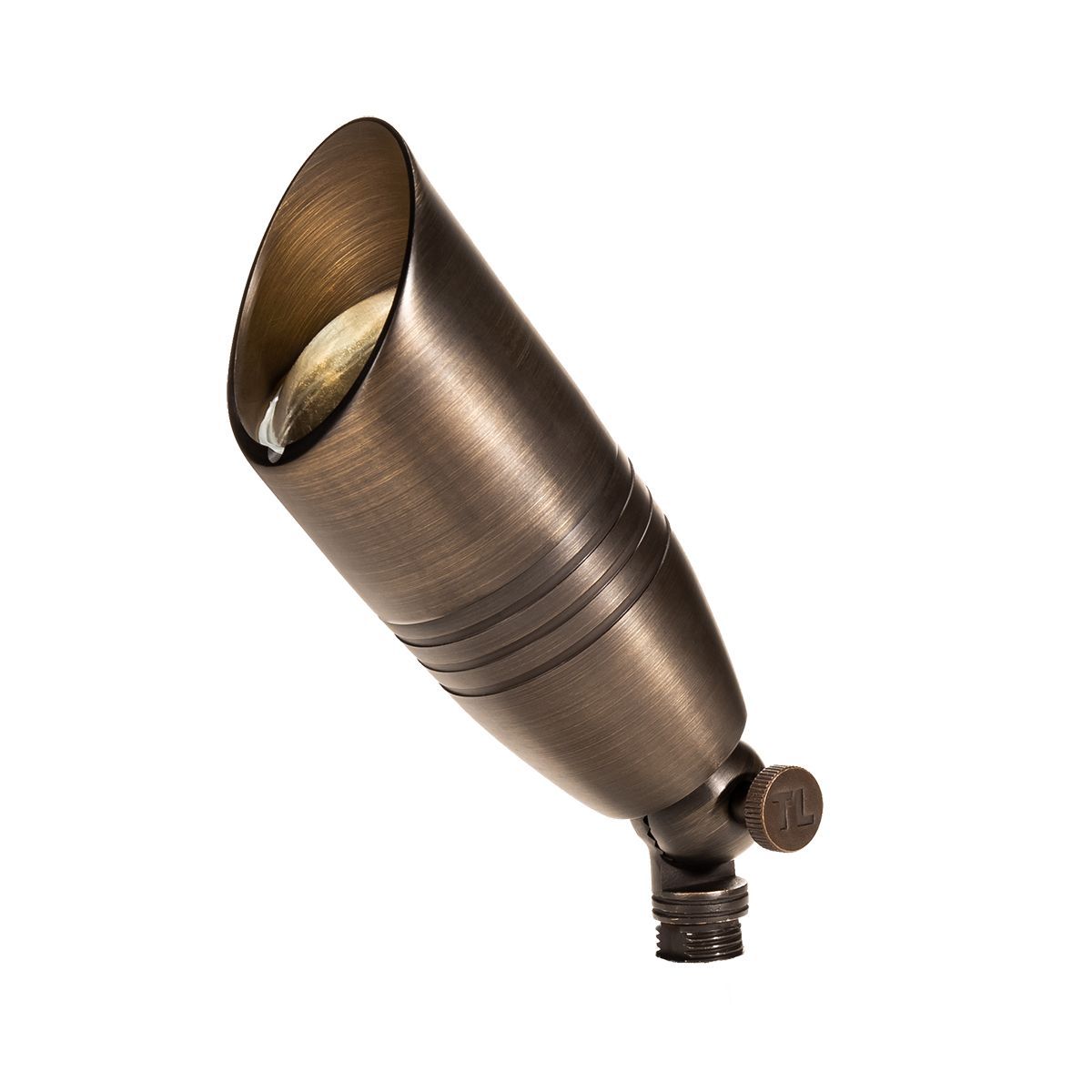

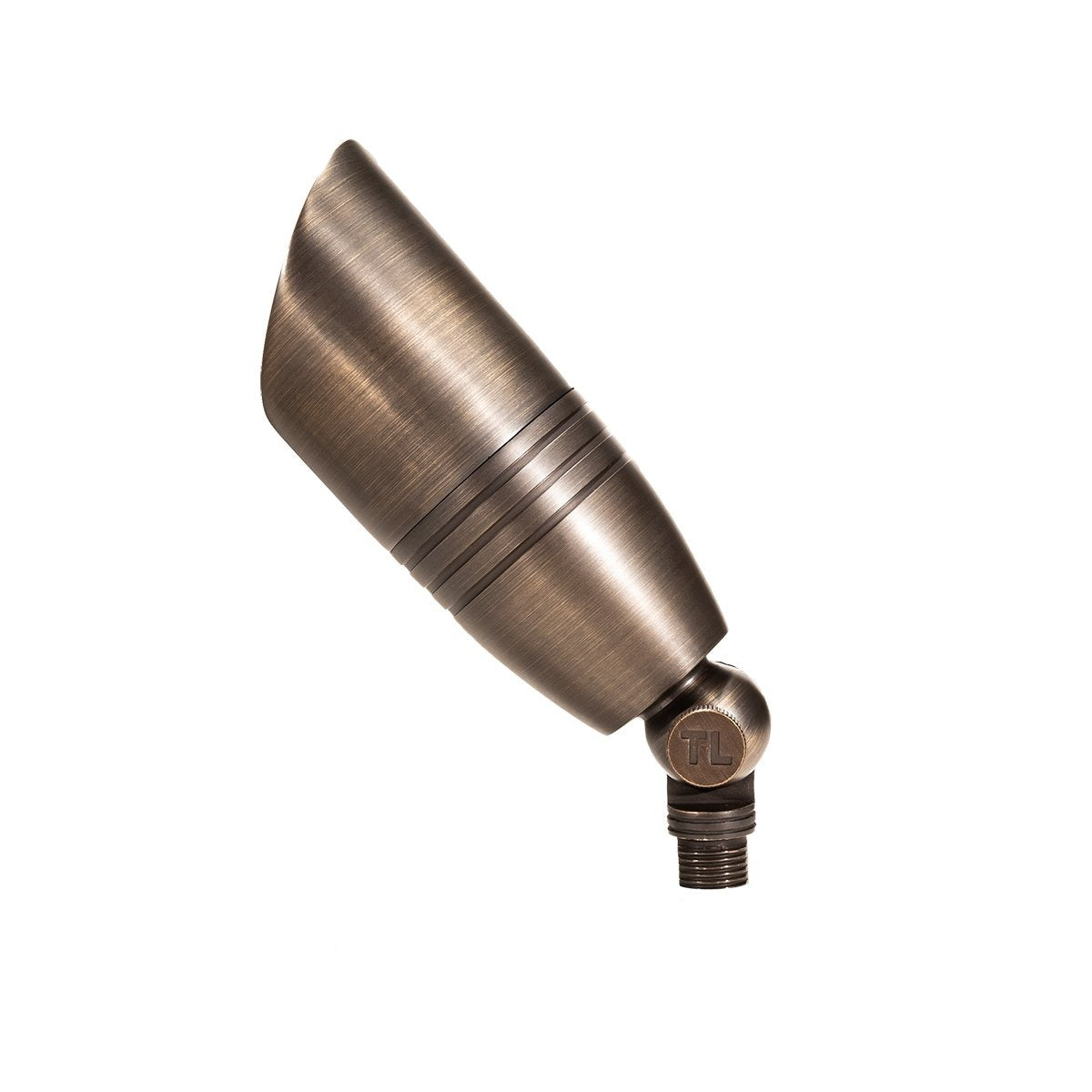

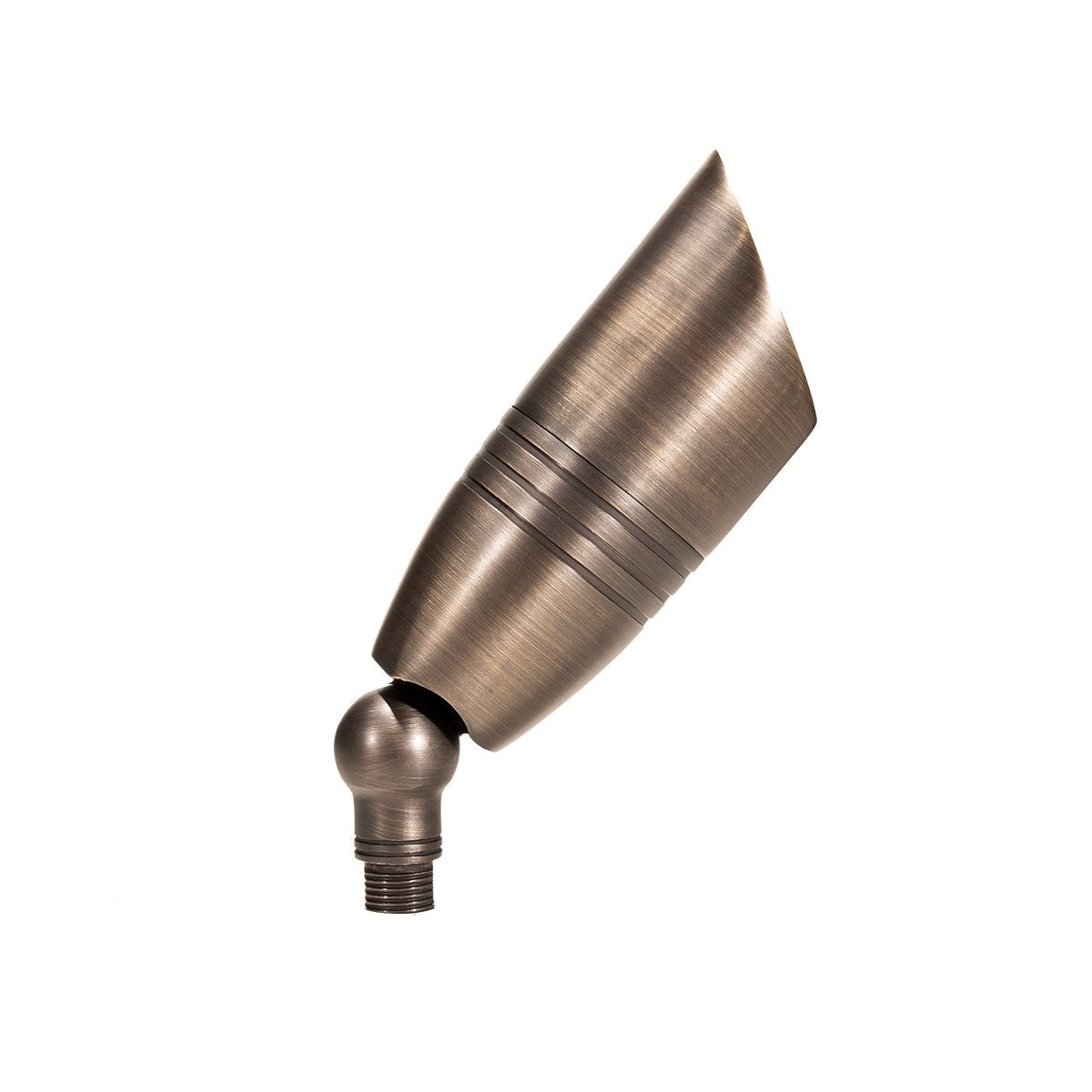

The Total Light Old Faithful Classic Brass Spotlight is a 12-volt landscape-lighting fixture designed for directional illumination around homes, gardens, and commercial properties. Its adjustable spotlight format can be aimed toward trees, shrubs, stonework, columns, signs, building details, and other features that benefit from focused light. The fixture’s size and range of compatible MR16 lamps make it useful for both compact planting areas and larger landscape elements.

The TL-UL200-CB is constructed from solid brass with a Classic Brass finish. A ground stake is included for installation in soil or a prepared landscape bed. The fixture accepts a replaceable MR16 bi-pin lamp, sold separately, allowing the installer to choose the light output, color temperature, and beam spread for the intended application rather than relying on a permanently integrated light source.

This spotlight operates as part of a compatible low-voltage landscape-lighting system. A 12-volt transformer, landscape cable, wire connectors, and MR16 lamp are required and sold separately. When planning a lighting run, account for the total lamp wattage, cable length, fixture spacing, and voltage drop. The fixture is ETL certified and carries Total Light lifetime residential and commercial warranties.

Key Features

• Directional spotlight design: Aims focused light toward landscape and architectural features.
• Solid brass construction: Provides a substantial fixture body for outdoor landscape-lighting installations.
• Classic Brass finish: Coordinates with other brass fixtures in a landscape-lighting system.
• Replaceable MR16 lamp: Allows compatible wattage, color-temperature, and beam-spread options to be selected separately.
• 12-volt operation: Integrates with a properly sized low-voltage landscape-lighting transformer.

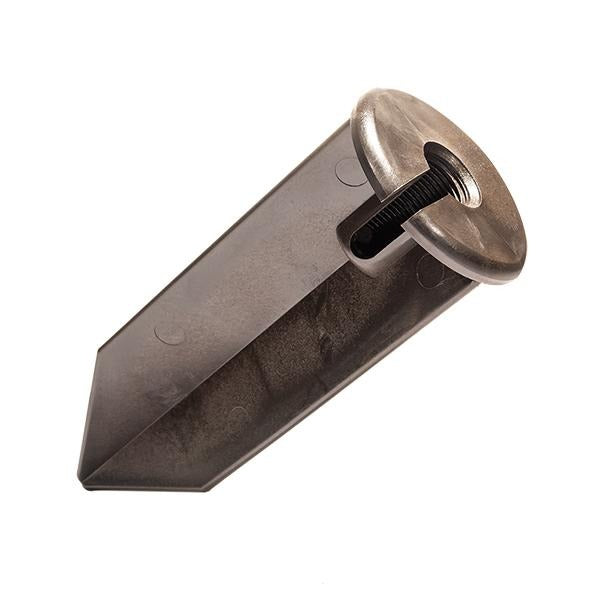

• Ground stake included: Supports installation in soil and prepared planting beds.

Common Uses

• Uplighting trees and ornamental plantings
• Highlighting shrubs and garden beds
• Illuminating stonework and landscape features
• Accent lighting for columns, walls, and facades
• Lighting mailboxes, signs, and address markers
• Residential and commercial landscape-lighting layouts

Technical Specifications

• Model: TL-UL200-CB
• Fixture Type: Low-voltage landscape spotlight / uplight
• Operating Voltage: 12 volts
• Material: Solid brass
• Finish: Classic Brass
• Color: Classic Brass
• Lamp Type: MR16 LED lamp, sold separately
• Socket: MR16 bi-pin
• Mounting: Ground stake included
• Power Supply: Compatible low-voltage transformer, sold separately
• Certification: ETL
• UPC: 810016890058
• Residential Warranty: Lifetime
• Commercial Warranty: Lifetime

Dimensions

Refer to the linked product specification sheet below for the fixture drawing and detailed dimensions.

Lamp and System Compatibility

The Old Faithful spotlight requires one compatible MR16 bi-pin lamp. Total Light MR16 LED lamps are available in multiple outputs, color temperatures, and beam spreads so the lighting effect can be matched to the feature being illuminated.

• Available Total Light lamp wattages: 3W, 5W, and 7W
• Available color temperatures: 2700K and 3000K
• Available beam spreads: 40 degrees and 60 degrees

View compatible Total Light MR16 LED lamps

Installation Notes

• Choose the fixture location and aiming direction before routing the landscape cable.
• Install the included ground stake in stable soil or a prepared landscape bed.
• Select an MR16 lamp with a suitable output and beam spread for the target feature.
• Use a compatible transformer sized for the total wattage of the lighting run.
• Account for cable length and voltage drop when planning longer runs or multiple fixtures.
• Follow the installation instructions supplied with the transformer, cable, connectors, and lamp.

What Is Included?

• One TL-UL200-CB Old Faithful Classic Brass Spotlight
• One ground stake

Not included: MR16 lamp, low-voltage transformer, landscape-lighting cable, and wire connectors.

View the 50-piece TL-UL200-CB bulk pack

Product Specification Sheet

Open the TL-UL200-CB specification sheet for the fixture drawing and additional product details.

View the TL-UL200-CB specification sheet

Frequently Asked Questions

Is an MR16 lamp included with the TL-UL200-CB?

No. The fixture requires one compatible MR16 bi-pin lamp, sold separately. This allows the brightness, color temperature, and beam spread to be selected for the project.

What can the Old Faithful spotlight illuminate?

It can be aimed toward trees, shrubs, stonework, columns, signs, walls, building details, and other landscape or architectural features.

Does the fixture include a ground stake?

Yes. A ground stake is included for installation in stable soil or a prepared landscape bed.

What else is needed to install this spotlight?

A compatible MR16 lamp, properly sized low-voltage transformer, landscape-lighting cable, and wire connectors are required and sold separately.

Why Choose the Old Faithful Brass Spotlight?

The TL-UL200-CB combines solid brass construction, adjustable directional lighting, replaceable MR16 lamp compatibility, and an included ground stake for a range of low-voltage landscape-lighting applications.
