Building a Complete Lighting System?
Pair your fixture with the components needed to build a complete low-voltage lighting system.
Not sure what size you need? Transformer capacity and wire gauge depend on fixture quantity, lamp wattage, cable length, system layout, and voltage drop. Size these components for the complete project rather than one fixture.
Product Overview

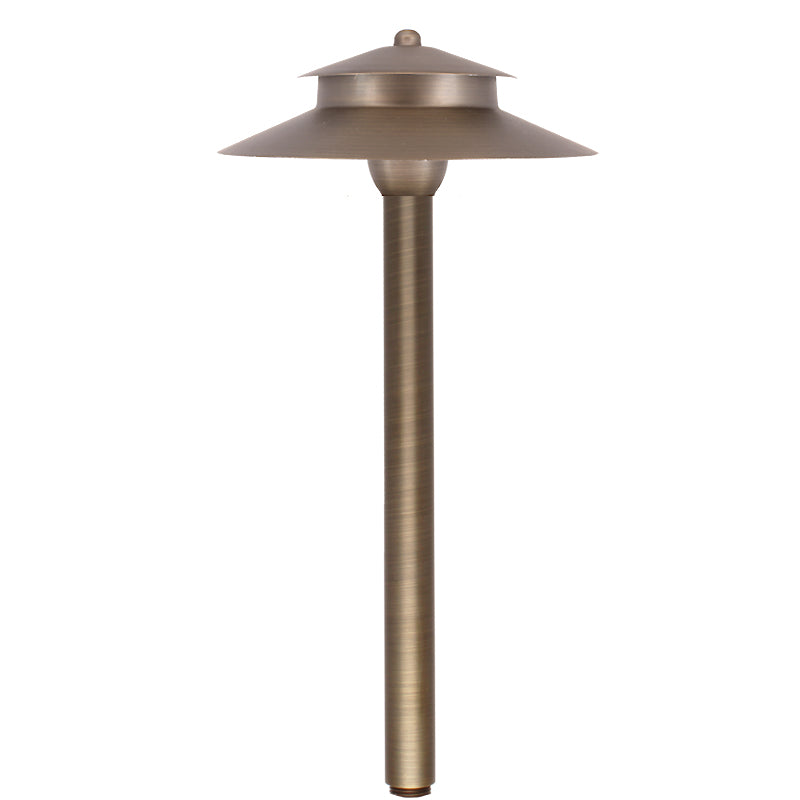

The Total Light Naples Two-Tier Path Light with 24-inch stem provides elevated, downward-directed illumination for walkways, garden beds, planting borders and other outdoor areas served by a low-voltage landscape lighting system. Its traditional two-tier shade helps shield the lamp from direct view while distributing light toward the ground, creating defined pools of illumination along paths and around landscaped areas. The taller 24-inch stem raises the shade above many shrubs, ornamental grasses and established ground covers, making this version especially useful where shorter path lights could become hidden as plants mature.
Constructed from solid brass and finished in Classic Brass, the Naples is designed to coordinate with traditional, contemporary and transitional landscapes. It operates on a 12V system and uses a replaceable LED G4 bi-pin lamp rated at no more than 10 watts, allowing the installer to choose the light output and color temperature that fit the project. The lamp is sold separately.
The fixture includes a clear glass lens, a ceramic G4 bi-pin socket with nickel contacts, a 36-inch 18/2 direct-burial lead wire and a TL-GSTAKE2 ground stake. The ceramic white underside of the shade helps reflect light toward the ground. The fixture is ETL certified and carries lifetime residential and commercial warranties.
Key Features
- Traditional two-tier shade directs illumination downward and helps limit glare
- 24-inch stem raises the fixture above taller ground cover and established plantings
- Solid-brass construction with a Classic Brass finish
- Ceramic white shade underside helps reflect light toward the ground
- Replaceable LED G4 bi-pin lamp system, maximum 10 watts
- 36-inch 18/2 direct-burial lead wire
- Clear glass lens included
- Designed for 12V low-voltage landscape lighting
- TL-GSTAKE2 ground stake included
- ETL certified
- Lifetime residential and commercial warranties
Common Uses
- Walkways and front-entry paths
- Garden beds and landscaped borders
- Areas with ornamental grasses, shrubs or taller ground cover
- Patio and outdoor-living approach paths
- Driveway edges and property walkways
- Residential, hospitality and light-commercial landscape projects
Technical Specifications
- Voltage: 12V
- Lamp Type: LED G4
- Socket: Ceramic G4 bi-pin base with nickel contacts and coated wire lead
- Maximum Lamp Rating: 10 watts
- Lamp Included: No
- Material: Solid brass
- Finish: Classic Brass
- Lead Wire: 36-inch 18/2 direct-burial lighting wire
- Lens: Clear glass lens included
- Mounting: TL-GSTAKE2 ground stake included; other mounting options may be available
- Product Feature: Water-resistant construction
- Certification: ETL
- Residential Warranty: Lifetime
- Commercial Warranty: Lifetime
Dimensions
- Stem Length: 24 inches
- Approximate Shade Diameter: 8.5 inches
- Approximate Overall Height: 26 inches
- Fixture Style: Two-tier path light
Lamp and System Compatibility
The TL-PL-2TIER-24-CB uses a replaceable 12V LED G4 bi-pin lamp rated at no more than 10 watts. Select the lamp output and color temperature according to the required brightness, fixture spacing and appearance of the surrounding landscape. The lamp is sold separately and the fixture must be connected to a compatible low-voltage transformer and landscape lighting system.
View compatible Total Light LED G4 lamps
Installation and Planning Notes
- Install as part of a compatible 12V low-voltage landscape lighting system.
- Use the included TL-GSTAKE2 ground stake in stable soil, mulch or a suitable planting area.
- Connect the attached lead wire to compatible low-voltage landscape-lighting cable.
- Account for the 24-inch stem height when positioning the fixture near windows, steps and mature plants.
- Plan spacing around pathway width, selected lamp output, plant growth and desired light overlap.
- Keep the shade and lamp area clear of leaves, mulch buildup and dense vegetation.
- Use appropriately sized transformer capacity, landscape wire and approved outdoor connections for the complete system.
What Is Included
- One Total Light Naples two-tier solid-brass path light
- One 24-inch stem
- One clear glass lens
- One TL-GSTAKE2 ground stake
- One attached 36-inch lead wire
What Is Not Included
- LED G4 bi-pin lamp
- Low-voltage transformer
- Main landscape lighting wire and installation connectors
Product Specification Sheet
Frequently Asked Questions
Does the TL-PL-2TIER-24-CB include a lamp?
No. It uses a replaceable 12V LED G4 bi-pin lamp, which is sold separately. The selected lamp must not exceed the fixture's 10-watt maximum rating.
Why choose the 24-inch stem version?
The taller stem raises the shade above many shrubs, ornamental grasses and established ground covers, helping the fixture remain visible as landscaping grows.
Can this fixture connect directly to household voltage?
No. It is designed for a compatible 12V low-voltage landscape lighting system and requires an appropriately sized transformer.
Is a ground stake included?
Yes. A Total Light TL-GSTAKE2 ground stake is included for installation in suitable soil, mulch and landscaped areas.
Why Choose Total Light?
Total Light fixtures are designed to support coordinated low-voltage landscape lighting systems with durable materials, replaceable lamps and accessible product resources. The Naples combines a familiar two-tier path-light design with solid-brass construction, a taller 24-inch stem and the flexibility to select the LED G4 lamp that fits the project.
