Building a Complete Lighting System?
Pair your fixture with the components needed to build a complete low-voltage lighting system.
Not sure what size you need? Transformer capacity and wire gauge depend on fixture quantity, lamp wattage, cable length, system layout, and voltage drop. Size these components for the complete project rather than one fixture.
Product Overview

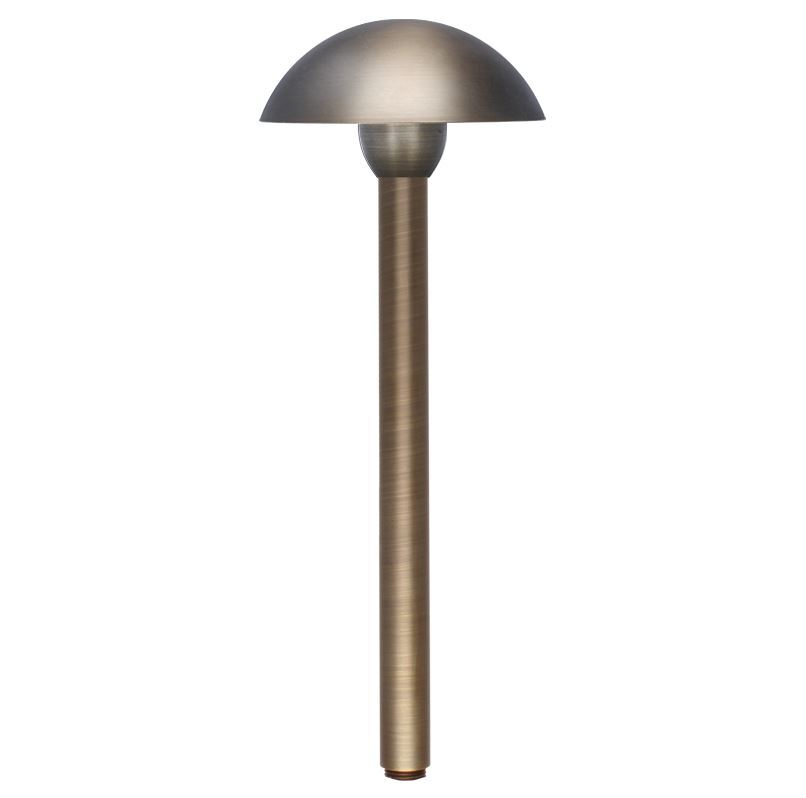

The Total Light Melbourne Dome Style Brass Path Light with 18-inch stem provides soft, downward-directed illumination for walkways, garden beds, planting borders and outdoor living areas. Its compact dome-shaped shade helps shield the lamp from direct view while spreading a circular pool of light across the surrounding ground. A ceramic white reflective underside supports downward light distribution, while the included clear glass lens helps protect the lamp area from debris and routine exposure in the landscape.
This 12V low-voltage path light is constructed from solid brass and finished in Classic Brass, giving it a clean profile that can coordinate with contemporary, transitional and traditional properties. The 18-inch stem raises the dome above lower plants and ground cover, making this version useful where a little additional fixture height is preferred along paths, garden borders or landscaped approaches.
The fixture uses a replaceable LED G4 bi-pin lamp rated at no more than 10 watts. The lamp is sold separately. A 36-inch section of 18/2 direct-burial lead wire is attached for connection to compatible low-voltage landscape-lighting cable, and a TL-GSTAKE2 ground stake is included for placement in suitable soil, mulch and landscaped areas. The fixture is ETL certified and carries lifetime residential and commercial warranties.
Key Features
- Compact dome-style shade creates a soft circular pool of downward light

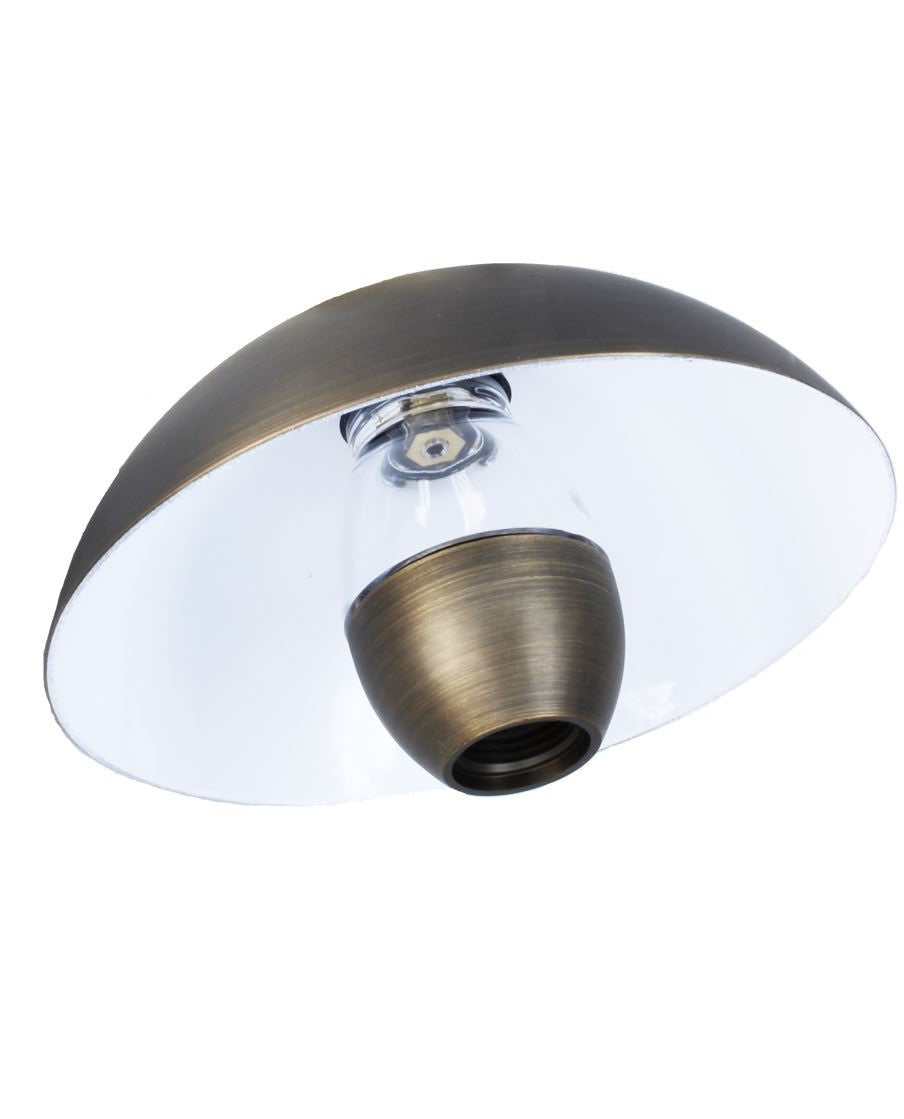

- Ceramic white reflective underside supports light distribution toward the ground
- Clear glass lens covers the lamp area
- 18-inch stem provides added height above lower planting beds and ground cover
- Solid-brass construction with a Classic Brass finish
- Replaceable LED G4 bi-pin lamp system, maximum 10 watts
- 36-inch 18/2 direct-burial lead wire
- Designed for 12V low-voltage landscape lighting

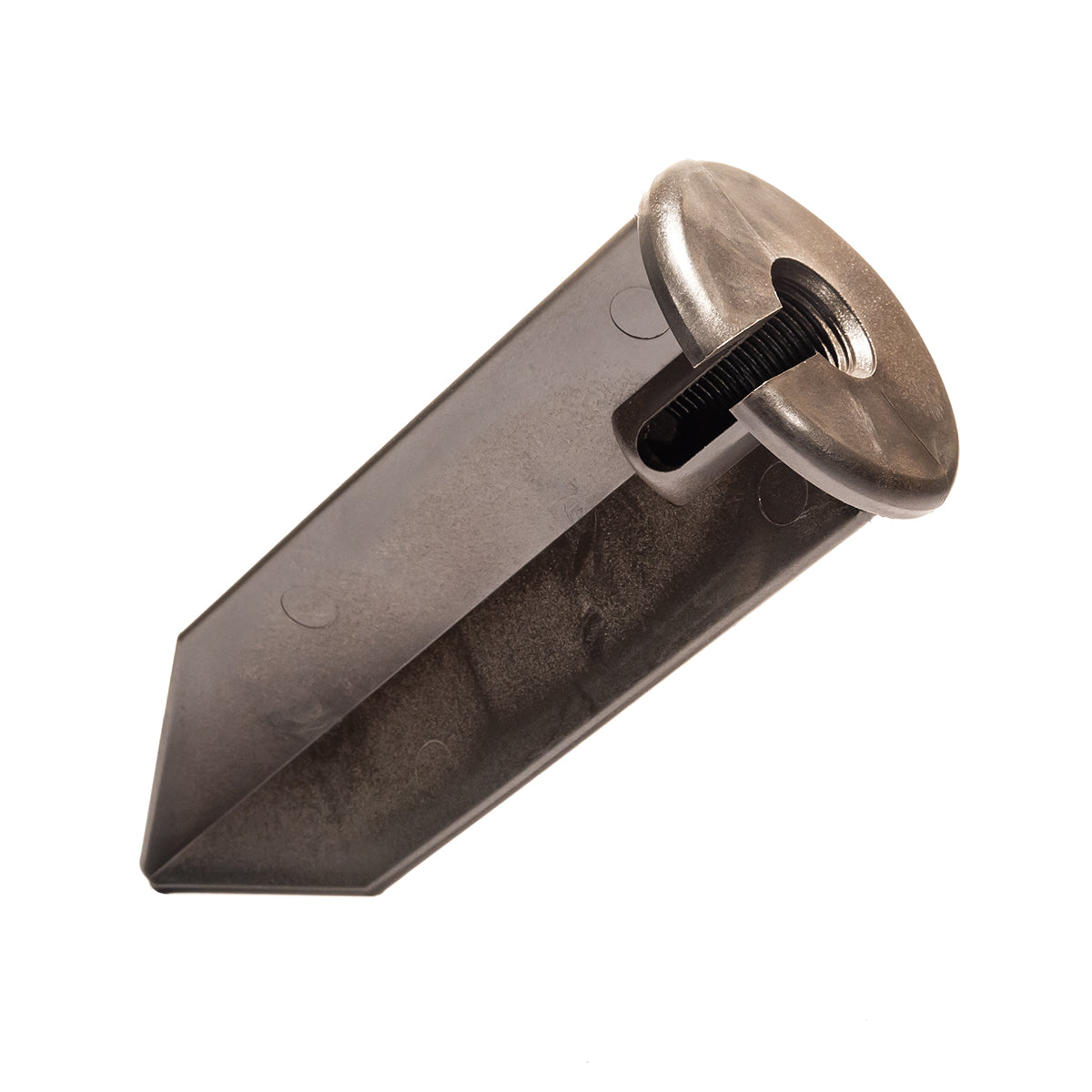

- TL-GSTAKE2 ground stake included
- ETL certified
- Lifetime residential and commercial warranties
Common Uses
- Walkways and front-entry paths
- Garden beds and landscaped borders
- Areas with low plants or ground cover
- Patio and outdoor-living approach paths
- Driveway edges and property walkways
- Residential and light-commercial landscape projects
Technical Specifications
- Voltage: 12V
- Lamp Type: LED G4
- Socket: Ceramic G4 bi-pin base with nickel contacts and coated wire lead
- Maximum Lamp Rating: 10 watts
- Lamp Included: No
- Material: Solid brass
- Finish: Classic Brass
- Shade Style: Dome
- Lead Wire: 36-inch 18/2 direct-burial lighting wire
- Lens: Clear glass lens included
- Mounting: TL-GSTAKE2 ground stake included; other mounting options may be available
- Product Feature: Water-resistant construction
- Certification: ETL
- Residential Warranty: Lifetime
- Commercial Warranty: Lifetime
Dimensions
- Stem Length: 18 inches
- Approximate Shade Diameter: 6 inches
- Approximate Overall Height: 21.5 inches
- Fixture Style: Dome-style path light
Lamp and System Compatibility
The TL-PL-DOME-18-CB uses a replaceable 12V LED G4 bi-pin lamp rated at no more than 10 watts. Select the lamp output and color temperature according to the required brightness, fixture spacing and desired appearance. The lamp is sold separately, and the fixture must be connected to a compatible low-voltage transformer and landscape lighting system.
View compatible Total Light LED G4 lamps
Installation and Planning Notes
- Install as part of a compatible 12V low-voltage landscape lighting system.
- Use the included TL-GSTAKE2 ground stake in stable soil, mulch or another suitable landscaped area.
- Connect the attached lead wire to compatible low-voltage landscape-lighting cable.
- Plan spacing around pathway width, selected lamp output, mature plant growth and desired light overlap.
- Keep the dome, lens and lamp area clear of leaves, mulch buildup and dense vegetation.
- Use appropriately sized transformer capacity, landscape wire and approved outdoor connections for the complete system.
What Is Included
- One Total Light Melbourne dome-style solid-brass path light
- One 18-inch stem
- One clear glass lens
- One TL-GSTAKE2 ground stake
- One attached 36-inch lead wire
What Is Not Included
- LED G4 bi-pin lamp
- Low-voltage transformer
- Main landscape lighting wire and installation connectors
Product Specification Sheet
Frequently Asked Questions
Does the TL-PL-DOME-18-CB include a lamp?
No. It uses a replaceable 12V LED G4 bi-pin lamp, which is sold separately. The selected lamp must not exceed the fixture's 10-watt maximum rating.
What type of light pattern does the dome shade create?
The dome helps direct the lamp output downward, creating a soft circular pool of light around the fixture.
Can this fixture connect directly to household voltage?
No. It is designed for a compatible 12V low-voltage landscape lighting system and requires an appropriately sized transformer.
Is a ground stake included?
Yes. A Total Light TL-GSTAKE2 ground stake is included for installation in suitable soil, mulch and landscaped areas.
Why Choose Total Light?
Total Light fixtures are designed to support coordinated low-voltage landscape lighting systems with durable materials, replaceable lamps and accessible product resources. The Melbourne combines a compact dome profile, solid-brass construction and flexible LED G4 lamp selection for pathways and landscaped areas.
