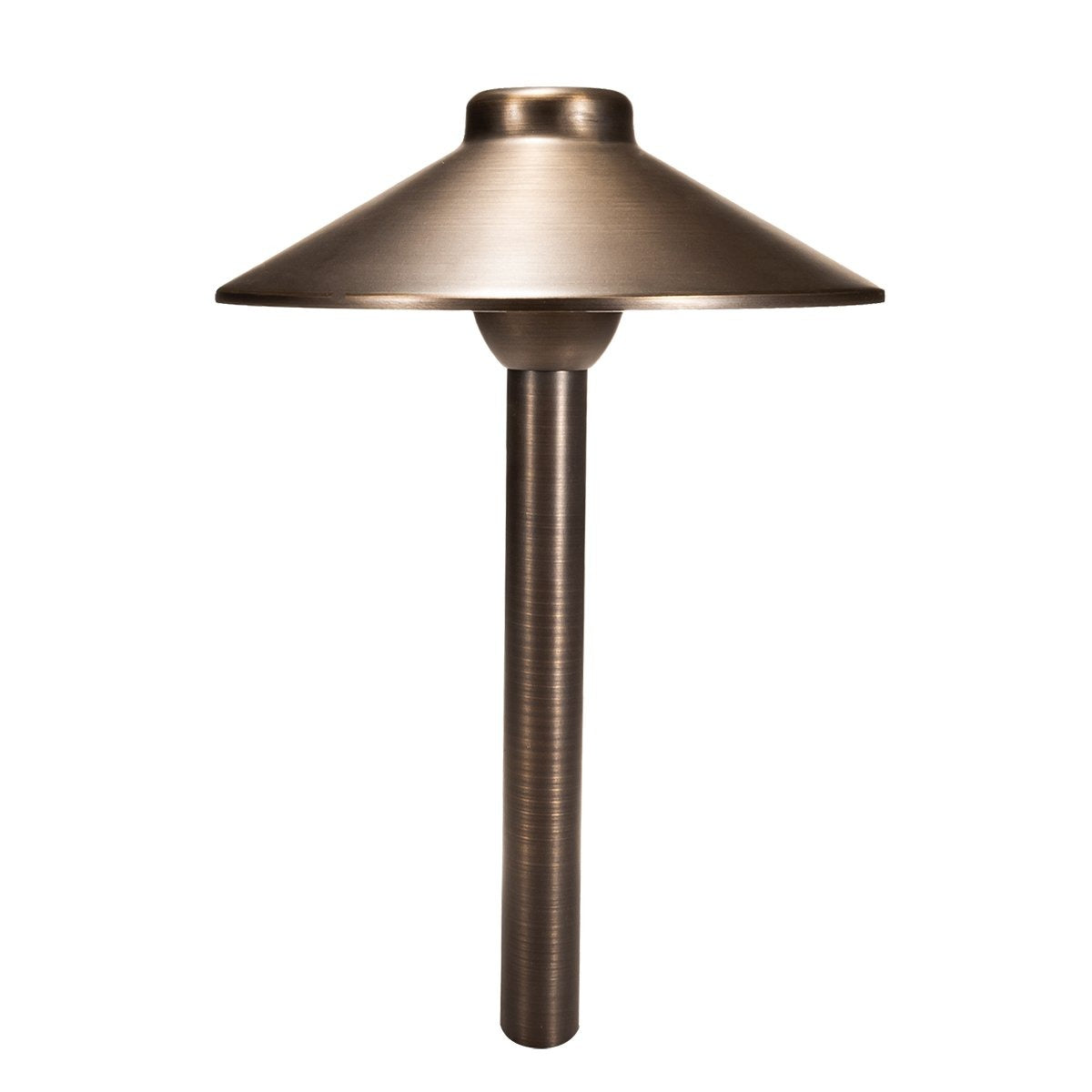

Total Light® Boca Brass Path Light- 8" Shade 18" Stem

Product Overview

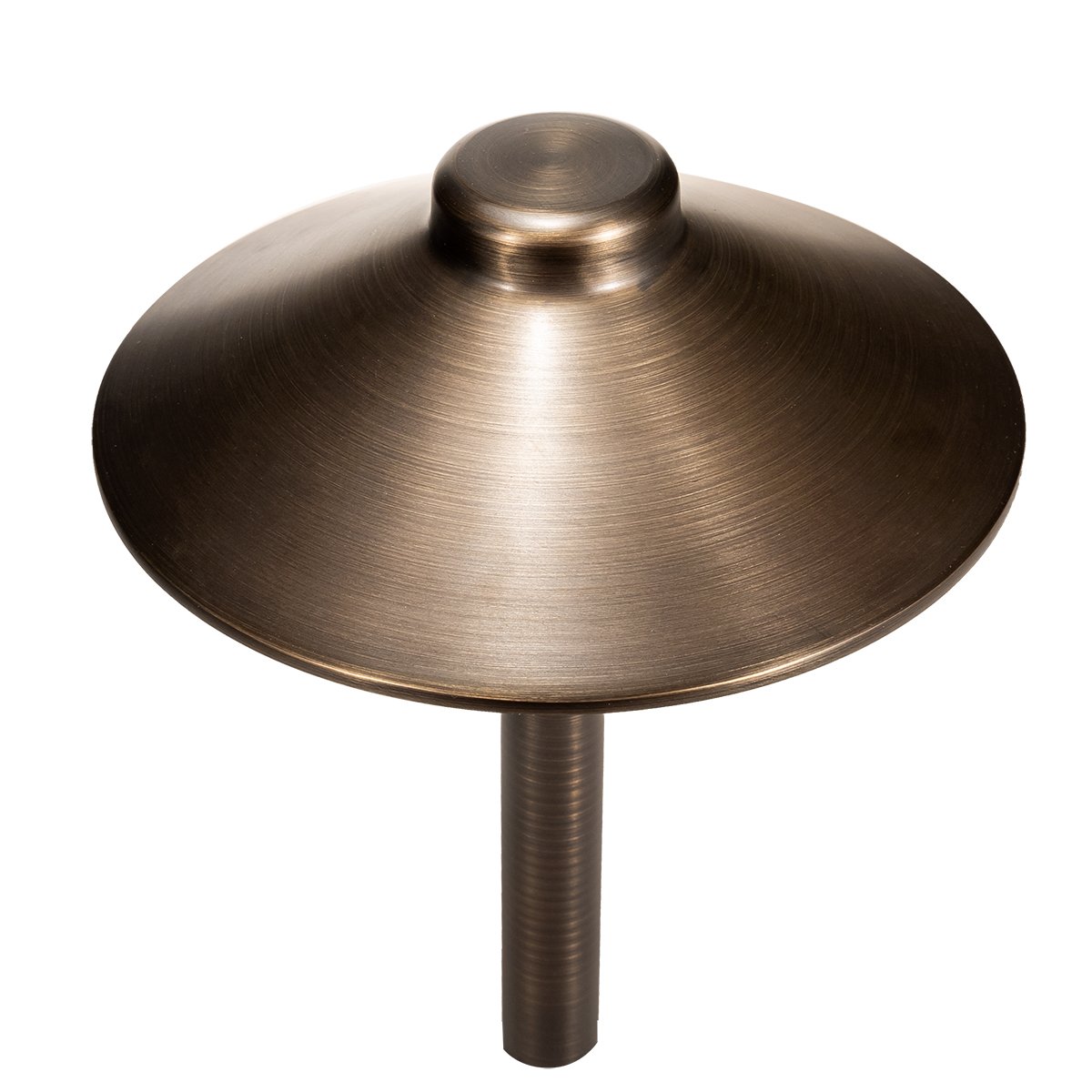

The Total Light Boca Brass Path Light provides soft, downward-facing illumination for walkways, garden paths, planting beds, patios, driveway borders, steps, stonework, and other frequently used outdoor areas. Its broad 8-inch shade helps spread light over a larger surface while directing the lamp output toward the ground, making it easier to define travel areas and highlight surrounding landscape features without relying on exposed, outward-facing light.

Constructed from solid brass with a Classic Brass finish, the TL-PL-8-18-CB is designed for use as part of a 12-volt low-voltage landscape-lighting system. The underside of the shade is finished with a ceramic white coating to help reflect and distribute light more evenly. An 18-inch stem raises the shade above surrounding plants and groundcover, while the included TL-GSTAKE2 ground stake supports installation in soil and landscaped beds.

This fixture uses a replaceable LED G4 bi-pin lamp rated at no more than 10 watts. The lamp and low-voltage transformer are sold separately, allowing the installer to choose an appropriate light output and color temperature for the project. A 36-inch section of 18/2 direct-burial lead wire is attached for connection to compatible low-voltage landscape-lighting cable. Both frosted and clear glass lenses are included, providing two lens options for the completed installation.

Key Features

• Solid brass construction: Built for outdoor landscape-lighting installations.
• Wide 8-inch shade: Helps direct illumination over a broader ground area.
• Ceramic white shade underside: Helps reflect and distribute the lamp output more evenly.
• Replaceable G4 lamp: Allows the installer to select a compatible lamp output and color temperature.
• Two included glass lenses: Supplied with both frosted and clear glass.
• Installation components included: Comes with a TL-GSTAKE2 ground stake and attached 36-inch lead wire.

Common Uses

• Walkways, sidewalks, and garden paths
• Driveway borders and entry areas
• Patios and outdoor seating areas
• Planting beds and flower gardens
• Steps and frequently traveled landscape areas
• Stone paths, boulders, and decorative landscape features

Technical Specifications

• Model: TL-PL-8-18-CB
• Fixture Type: Low-voltage path light
• Operating Voltage: 12 volts
• Construction: Solid brass
• Finish: Classic Brass
• Lamp Type: LED G4, sold separately

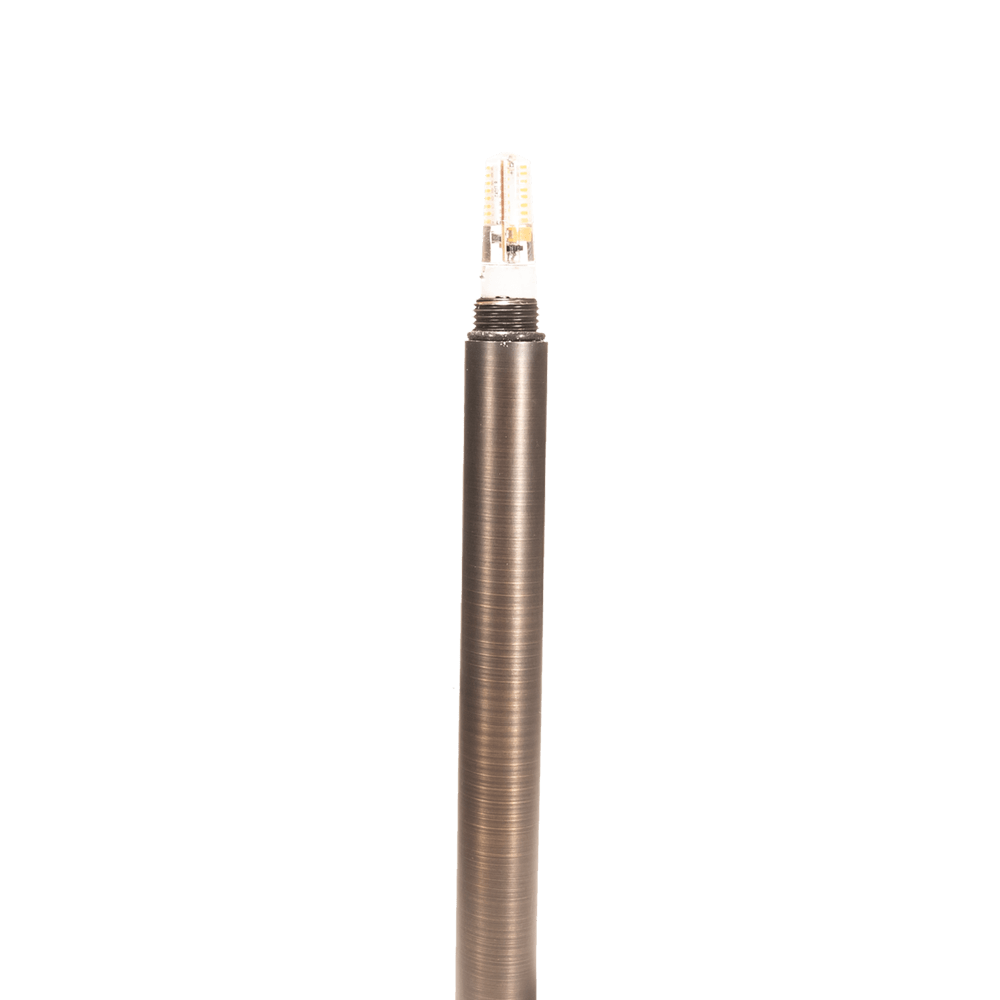

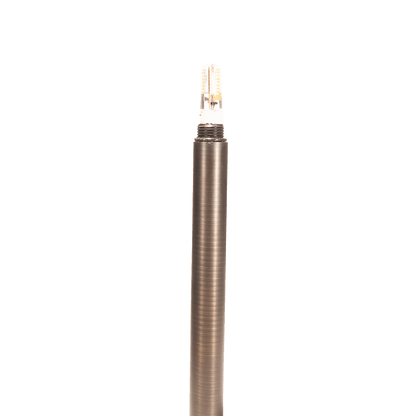

• Socket: Ceramic G4 bi-pin base with nickel contacts and coated wire lead
• Maximum Lamp Rating: 10 watts
• Lead Wire: 36-inch 18/2 direct-burial lighting wire
• Lens: Frosted and clear glass lenses included
• Power Supply: Compatible low-voltage transformer, sold separately
• Mounting: TL-GSTAKE2 ground stake included; other mounting options may be available
• Product Feature: Water-resistant construction
• Certification: ETL
• UPC: 810016890874

Dimensions

• Nominal Shade Diameter: 8 inches
• Nominal Stem Length: 18 inches
• Approximate Overall Height: 21.19 inches
• Approximate Shade Diameter: 7.80 inches
• Approximate Stem Diameter: 0.99 inch

Refer to the linked specification sheet below for the complete dimensional drawing.

Lamp and System Compatibility

The TL-PL-8-18-CB requires a compatible 12-volt LED G4 bi-pin lamp and a properly sized low-voltage landscape-lighting transformer. The lamp and transformer are not included with the fixture.

View compatible Total Light G4 LED lamps

Installation and Use Notes

• Connect the attached lead wire to compatible low-voltage landscape-lighting cable.
• Use an appropriately sized 12-volt landscape-lighting transformer.
• Select a compatible LED G4 lamp rated at no more than 10 watts.
• Position the shade so illumination is directed toward the intended path or landscape area.
• Follow the transformer, cable, connector, and lamp manufacturers' instructions during installation.

What Is Included?

• One TL-PL-8-18-CB Boca path-light fixture

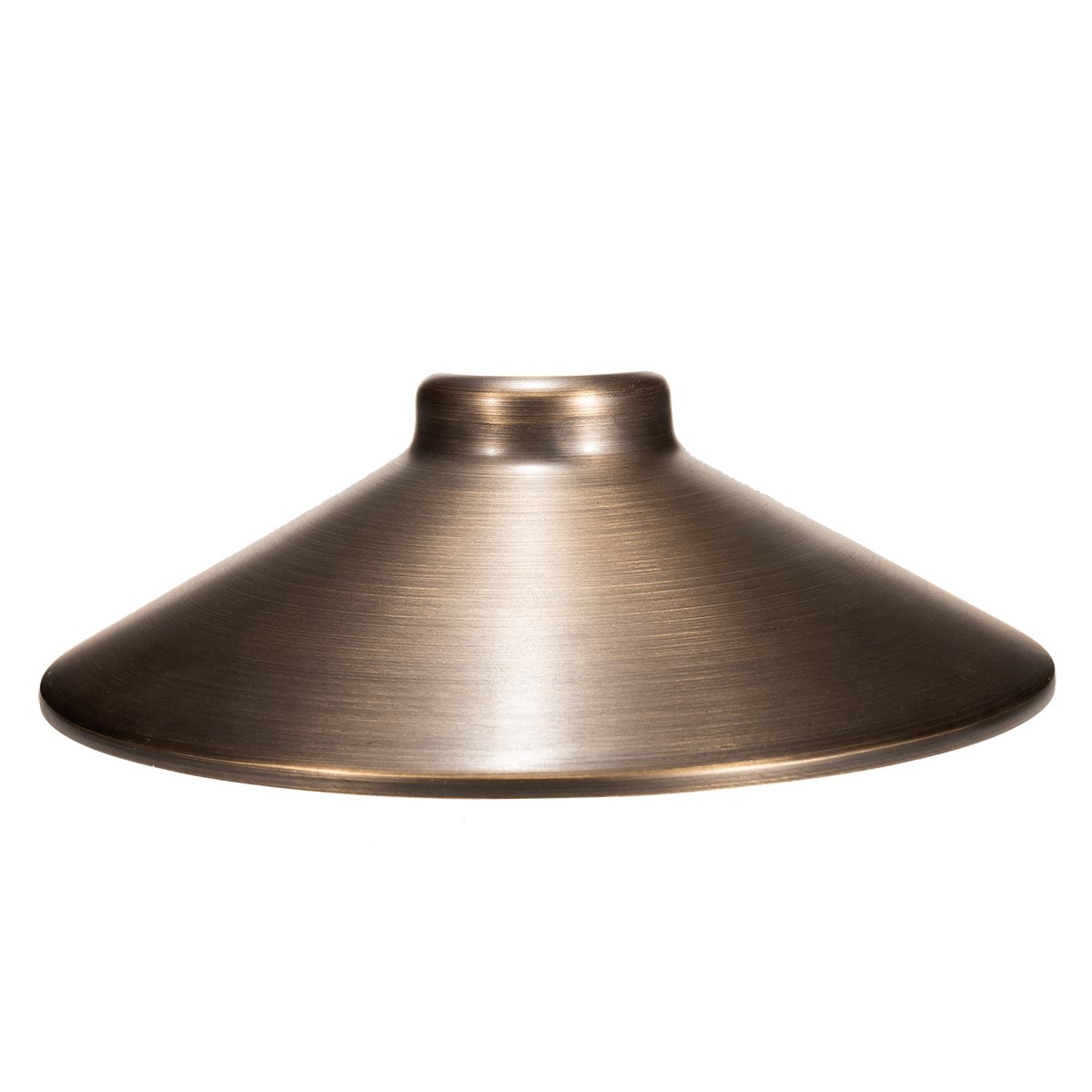

• One 8-inch brass shade

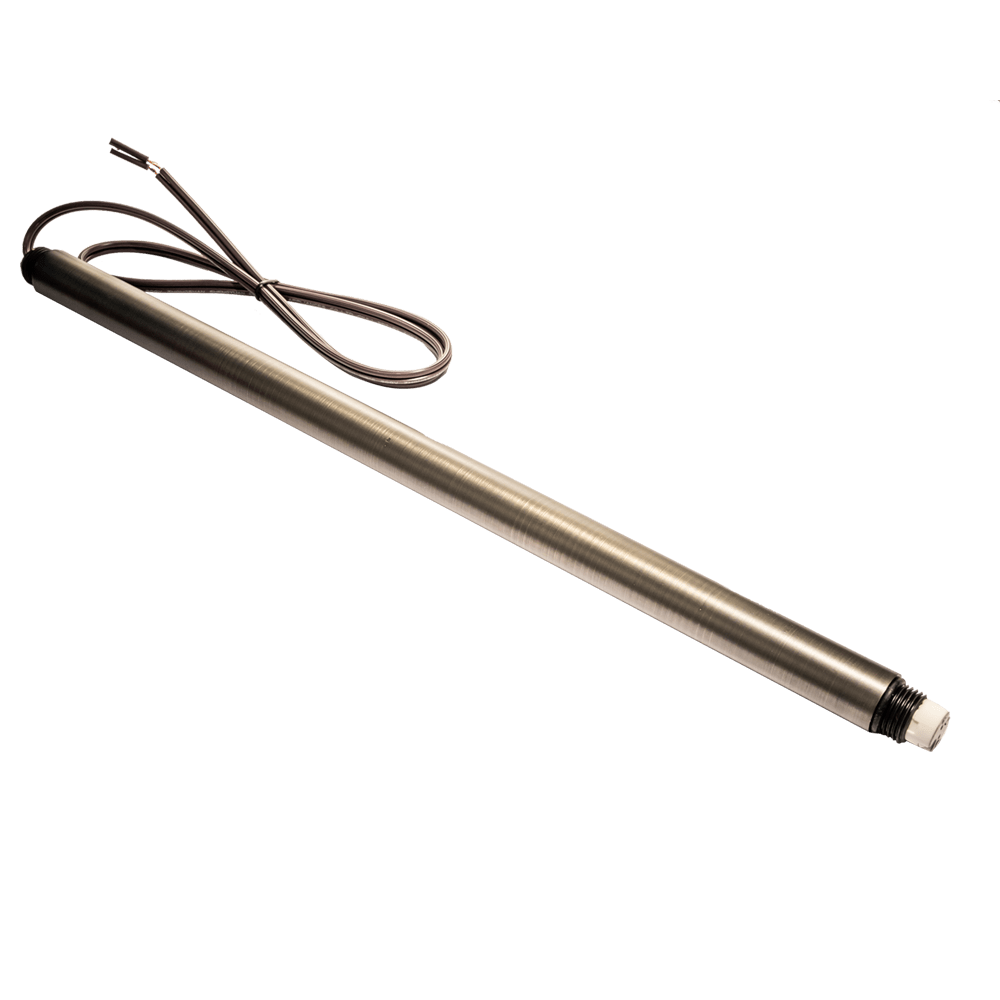

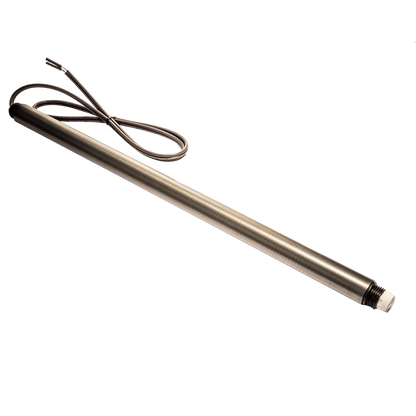

• One 18-inch stem
• One frosted glass lens
• One clear glass lens

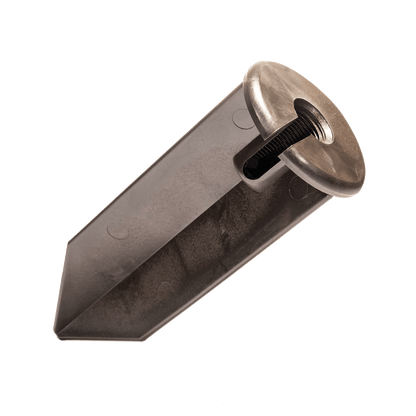

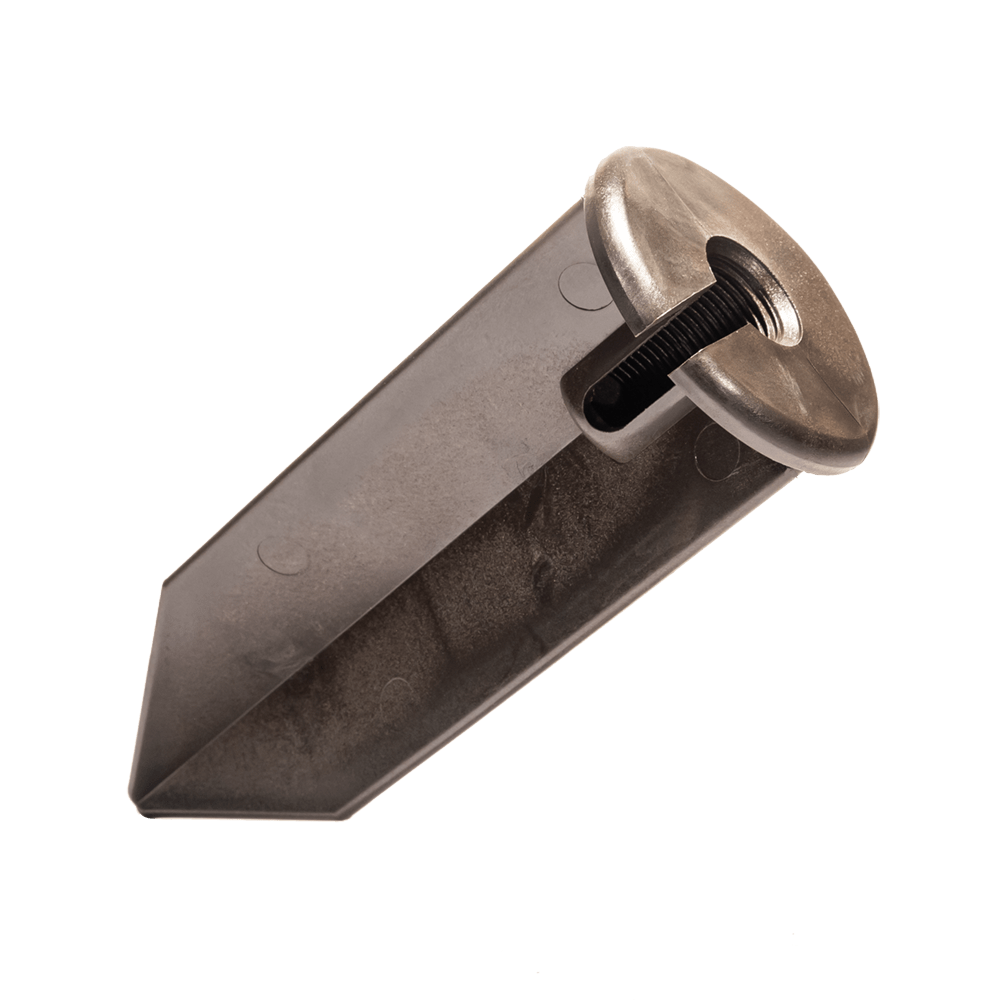

• One TL-GSTAKE2 ground stake
• One attached 36-inch lead wire

Not included: G4 LED lamp, landscape-lighting cable, wire connectors, and low-voltage transformer.

Product Specification Sheet

Open the product specification sheet for the complete dimensional drawing, electrical requirements, included components, and fixture details.

View the TL-PL-8-18-CB specification sheet

Frequently Asked Questions

Does the TL-PL-8-18-CB include a lamp?

No. A compatible 12-volt LED G4 bi-pin lamp is required and sold separately. The selected lamp must not exceed the fixture's 10-watt maximum rating.

Does this path light include a ground stake?

Yes. The fixture includes a Total Light TL-GSTAKE2 ground stake for installation in soil or landscaped beds.

What transformer does this fixture require?

It operates as part of a 12-volt low-voltage landscape-lighting system. The transformer should be sized for the combined wattage, wire length, and layout of the complete lighting system.

Where is the Boca path light commonly installed?

Common applications include walkways, steps, sidewalks, patios, garden beds, driveway borders, stone paths, and other areas that benefit from low-level downward-facing illumination.

Why Choose Total Light?

Total Light supports this solid brass path light with detailed product documentation and a lifetime warranty. Its replaceable lamp design also allows the light output and color temperature to be selected for the needs of the individual landscape-lighting project.
