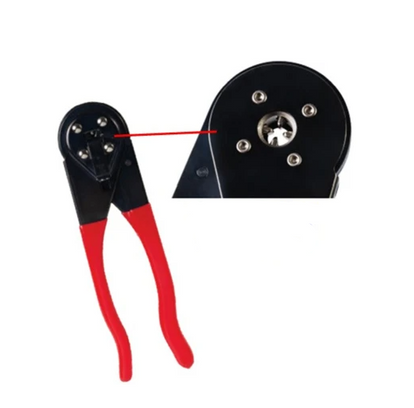

Total Light® 4-way Copper Sleeve Crimper

Product Overview

The Total Light four-way copper-sleeve crimper is designed for making secure mechanical crimps in compatible low-voltage landscape-lighting and irrigation wire connections. Its high-leverage ratcheting mechanism advances through the crimp and normally remains engaged until the connection is complete. A multi-stage quick-release feature allows the jaws to be opened when adjustment is needed. Four die positions support a range of copper crimp sleeves and wire combinations.

Fits & Compatibility

Use with the connector manufacturer’s approved copper sleeve and wire combination. Compatible Total Light listings include the 20245 dry-crimp connectors, 20810 central-point connectors and 20215 grease-filled connectors.

Key Details

• Tool length: 8 inches
• Four crimp die positions: #1, #2, #3 and #4
• High-leverage ratcheting action
• Multi-stage quick release
• Handle made in the USA

Listed Wire Combinations

• Die #1: Two #18 wires, or two through four #16 wires
• Die #2: Two through four #14 wires; two or three #12 wires; two or three #10 wires
• Die #3: Two or three #8 wires; two #6 wires
• Die #4: Four #12 wires; four #10 wires; four #8 wires; three #6 wires; two #4 wires

What Is Included

One four-way copper-sleeve crimping tool. Wire, crimp sleeves and protective connector housings are not included.

Frequently Asked Questions

Does the tool include wire connectors?
No. Select the compatible crimp sleeves and protective housings separately.

Why does the ratchet stay engaged?
The ratcheting mechanism is designed to continue through the crimp cycle. Use the quick-release feature when the jaws need to be opened before completion.
