Product Overview

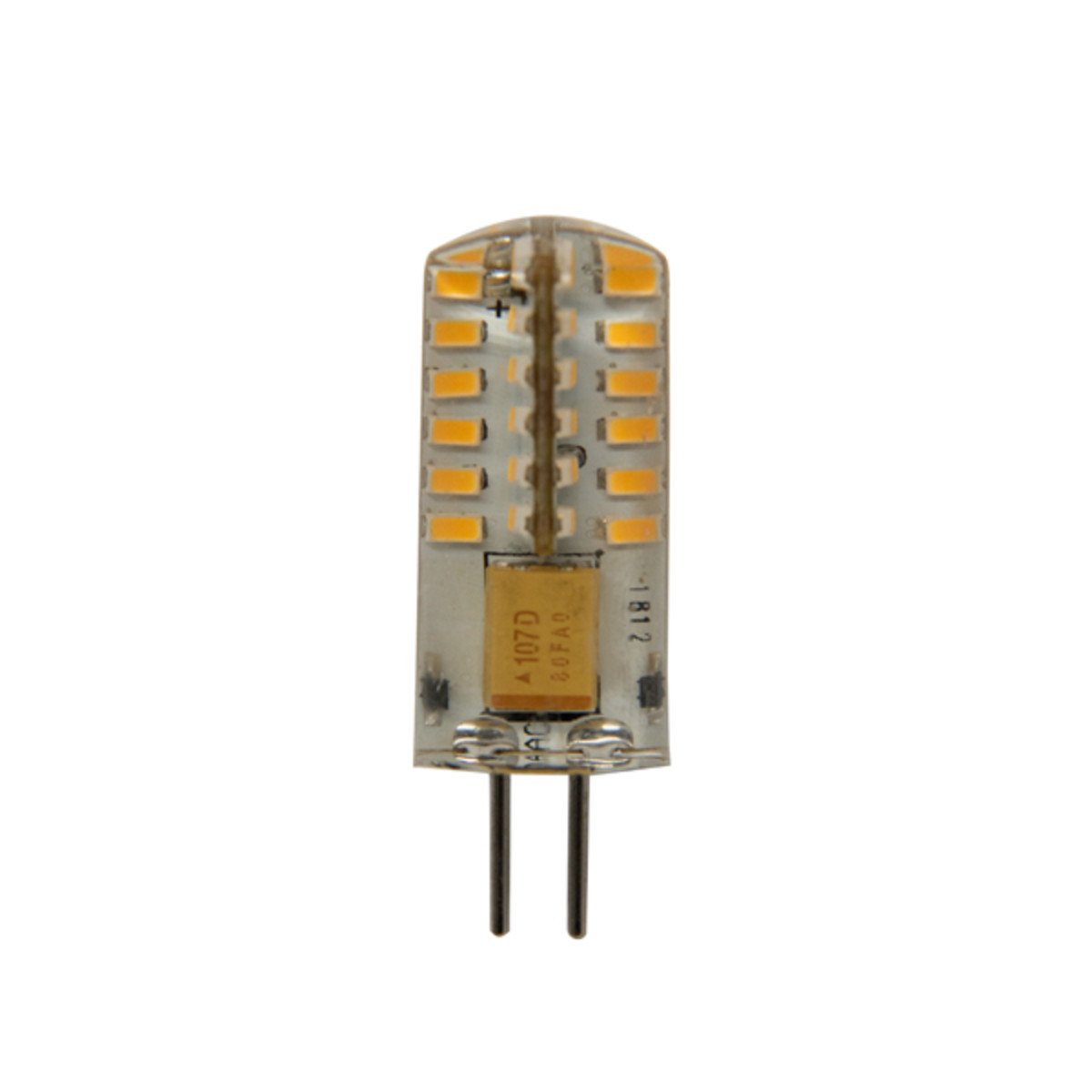

The Total Light TL-G4-2.5W-30 is a single replaceable G4 bi-pin LED lamp designed for compatible low-voltage landscape-lighting fixtures. This exact configuration uses 2.5 watts and produces 185 lumens with a 3000K white color temperature. The slightly cleaner neutral-warm appearance works well in path lights, deck lights, wall-wash fixtures, and other outdoor applications where a consistent 3000K lighting system is desired.
The lamp operates on compatible 9V–15V AC/DC systems and is listed for its longest service life when operated at 12 volts. Its compact silica-gel-style body includes UV inhibitors and stainless-steel pins for connection to a compatible G4 socket. A listed CRI of 80+ supports clear illumination while keeping power consumption low.
This product page is for one 2.5W, 3000K lamp. Before ordering, confirm that the fixture uses a replaceable G4 bi-pin lamp, that 2.5 watts is within the fixture rating, and that the lamp will fit without contacting the lens or housing. Include the lamp's 2.5-watt load when calculating transformer capacity.
Key Features
- Single replaceable G4 bi-pin LED lamp
- 2.5-watt power consumption
- 185-lumen light output
- 3000K white color temperature
- Compatible 9V–15V AC/DC operation
- 80+ CRI
- 25,000-hour rated life
- Stainless-steel pins
- Silica-gel-style body with UV inhibitors
- Dimmable with compatible Lutron magnetic dimmers
Common Uses
- Replacement lamps for compatible Total Light path lights
- Deck and step lighting
- Wall-wash and accent lighting
- Garden and planting-bed illumination
- Walkways and outdoor living areas
- Matching an existing 3000K landscape-lighting system
Technical Specifications
- Lamp Type: LED G4
- Base: G4 bi-pin
- Wattage: 2.5W
- Light Output: 185 lumens
- Color Temperature: 3000K white
- Operating Range: 9V–15V AC/DC
- Recommended Operating Voltage: 12V for longest listed life
- CRI: 80+
- Rated Life: 25,000 hours
- Pin Material: Stainless steel
- Body Style: Silica gel with UV inhibitors
- Dimming: Compatible with supported Lutron magnetic dimmers
Compatible Total Light Fixtures
Use this lamp only in compatible fixtures designed for a replaceable G4 bi-pin lamp. Confirm voltage, wattage rating, and physical clearance before installation.
- Classic Brass Deck Light — TL-DL100-CB
- Classic Brass Wall Wash — TL-AL100-CB
- Total Light Path Lights — confirm the selected fixture uses a replaceable G4 lamp
Compatibility and Installation Notes
- Confirm the fixture uses a G4 bi-pin socket.
- Confirm 2.5 watts is within the fixture's maximum lamp rating.
- Verify clearance between the lamp, lens, and fixture housing.
- Use with a compatible 9V–15V AC/DC low-voltage system.
- Include 2.5 watts per lamp when calculating transformer load.
- Match nearby lamps to 3000K for a consistent appearance.
Project-Quantity Bulk Packs
What Is Included
- One Total Light TL-G4-2.5W-30 LED lamp
What Is Not Included
- Landscape-lighting fixture
- Low-voltage transformer
- Landscape-lighting cable and connectors
- Dimmer or lighting control
Product Specification Sheet
Frequently Asked Questions
What color light does TL-G4-2.5W-30 produce?
This lamp produces 3000K white light, a slightly cleaner neutral-warm appearance than 2700K.
How bright is this lamp?
The TL-G4-2.5W-30 is listed at 185 lumens while using 2.5 watts.
Can this G4 lamp be dimmed?
The product is identified as dimmable with compatible Lutron magnetic dimmers. Confirm compatibility with the complete transformer and control system before installation.
Are matching bulk packs available?
Yes. The exact 2.5W, 3000K configuration is available in linked 25-count and 50-count packs.
Why Choose Total Light?
The TL-G4-2.5W-30 provides a clearly identified replacement configuration for compatible Total Light fixtures, making it easier to match wattage, color temperature, and light output when maintaining or expanding a low-voltage landscape-lighting system.
