Product Overview

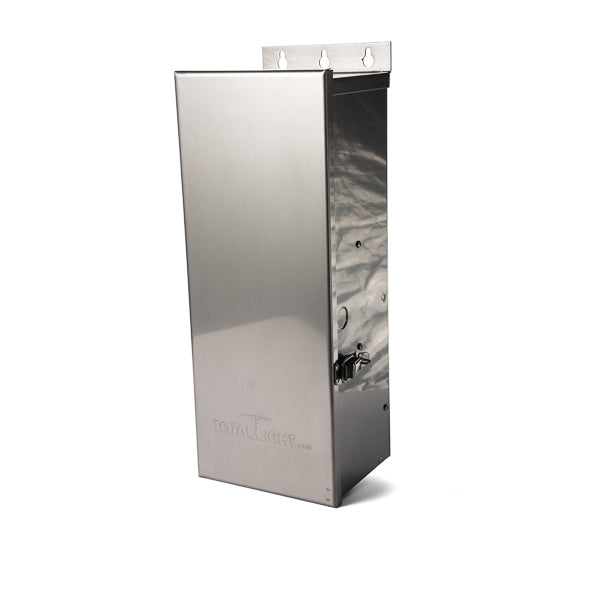

The Total Light TL-TRAN600MT-SS is a 600-watt multi-tap low-voltage landscape-lighting transformer designed for larger residential and commercial lighting systems. Its 12V–22V output range gives installers multiple voltage options for balancing longer cable runs and larger fixture layouts while keeping the system on a low-voltage power supply.
The transformer is housed in a heavy-duty stainless-steel cabinet with a sealed, lockable door for indoor or outdoor installation. A quick-mount bracket, pre-scored knockouts, large internal wiring compartment, large terminal strip, and 6-foot heavy-duty power cord are provided to make installation and service access more practical. Internal protection features include surge suppression, primary thermal protection, and a secondary-side magnetic circuit breaker.
This model is intended for systems with a connected load that fits within the transformer’s 600-watt capacity. Select the appropriate output tap based on the complete lighting layout, cable length, wire gauge, total fixture wattage, and measured voltage at the fixtures. Follow applicable electrical codes and the linked product specification sheet during installation.
Key Features
- 600-watt capacity: Sized for larger low-voltage landscape-lighting systems.
- 12V–22V multi-tap output: Provides multiple voltage taps for system balancing and longer cable runs.
- Stainless-steel enclosure: Heavy-duty cabinet for indoor or outdoor installation.
- Sealed lockable door: Helps protect internal connections and controls.
- Large wiring compartment: Provides room for field connections and service access.
- Installation-friendly cabinet: Includes a quick-mount bracket and pre-scored knockouts.
- 6-foot power cord: Heavy-duty cord supplied with the transformer.
- Electrical protection: Includes surge suppression, primary thermal protection, and a secondary-side magnetic circuit breaker.
Common Uses
- Large residential landscape-lighting systems
- Commercial low-voltage lighting installations
- Projects with long cable runs
- Multi-zone path, accent, deck, and architectural lighting layouts
- Systems requiring voltage-drop compensation through higher output taps
Technical Specifications
- Model: TL-TRAN600MT-SS
- Transformer Capacity: 600 watts
- Output Voltage Range: 12V–22V multi-tap
- Enclosure Material: Stainless steel
- Installation: Indoor or outdoor use
- Door: Sealed and lockable
- Power Cord: 6-foot heavy-duty cord
- Internal Wiring Rating: Up to 125°C
- Protection: Surge suppressor, primary thermal protection, secondary magnetic circuit breaker
- UPC: 810016891611
- Residential Warranty: Lifetime
- Commercial Warranty: Lifetime
System Planning Notes
- Calculate the total connected fixture wattage before selecting the transformer load.
- Account for cable length, wire gauge, fixture spacing, and voltage drop when choosing an output tap.
- Use only the tap needed to deliver the correct operating voltage at the fixtures.
- Keep the installed load within the transformer’s rated capacity.
- Use compatible low-voltage landscape-lighting cable, connectors, fixtures, and controls.
- Follow applicable electrical codes and the product documentation during installation.
What Is Included?
- One Total Light TL-TRAN600MT-SS 600W multi-tap stainless-steel transformer
- Attached 6-foot heavy-duty power cord
- Quick-mount cabinet hardware/features as provided with the transformer
Product Specification Sheet
Open the specification sheet for product details and installation information.
View the TL-TRAN600MT-SS specification sheet
Frequently Asked Questions
What does multi-tap mean on this transformer?
The transformer provides multiple low-voltage output taps from 12V through 22V. These taps allow an installer to compensate for voltage drop on longer cable runs and larger layouts while maintaining the proper voltage at the fixtures.
How much lighting can this transformer support?
The transformer is rated for up to 600 watts. The actual system should be planned using the total connected fixture wattage along with wire length, wire gauge, and voltage-drop considerations.
Can the TL-TRAN600MT-SS be installed outdoors?
Yes. The current product configuration uses a stainless-steel cabinet with a sealed lockable door and is intended for indoor or outdoor installation.
Which voltage tap should I use?
The correct tap depends on the complete layout. Cable length, wire gauge, total load, and measured fixture voltage should be used to select the appropriate output.
Why Choose Total Light?
The TL-TRAN600MT-SS combines 600-watt capacity with a broad 12V–22V multi-tap range, giving installers more flexibility when planning larger landscape-lighting systems and longer cable runs.
