Total Light® Well Light, Path Light and Up Light Combo #2 Complete Landscape Kit

Product Overview

The Total Light Well Light Combo #2 combines in-grade well lights, brass directional uplights, and brass path lights for a layered low-voltage landscape lighting layout. It is designed for properties where both vertical focal points and pedestrian areas need attention, allowing several lighting effects to work together instead of relying on one fixture style.

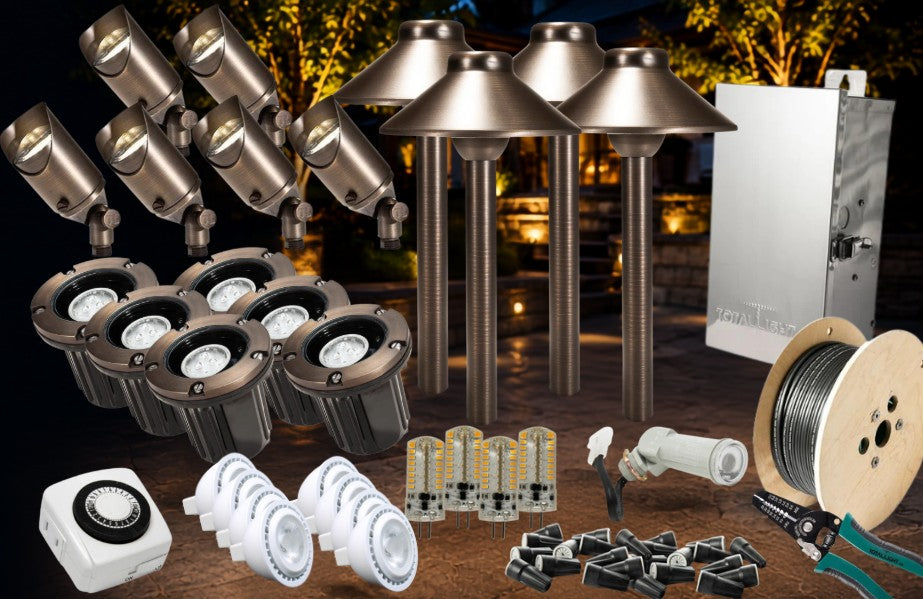

The package includes six well lights, six Blaze brass uplights, four Boca brass path lights, a 200-watt stainless steel transformer, 250 feet of 12/2 low-voltage wire, the listed LED lamps, waterproof connectors, a photocell, mechanical timer, and wire cutter. This creates a flexible base for mixed tree, architectural, garden, and pathway lighting.

What's Included

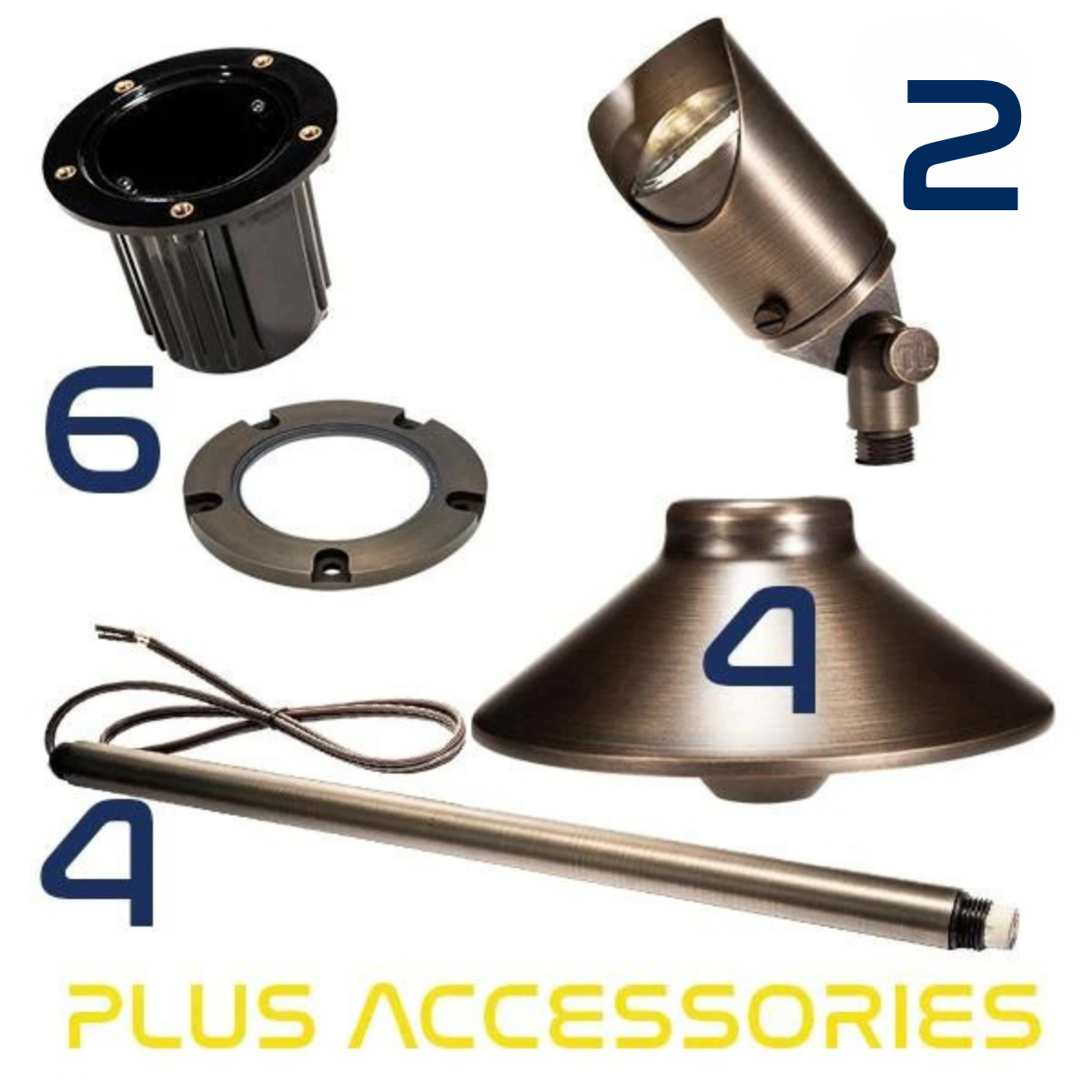

• 6 × TL-WL-1-CB Well Lights
• 6 × TL-UL300-CB Blaze Brass Up Lights
• 4 × TL-PL-8-18-CB Boca Brass Path Lights
• 4 × TL-G4-2.5W-30 G4 LED Lamps
• 6 × TL-MR16-7W-40D-30 MR16 LED Lamps
• 2 × TL-MR16-5W-40D-30 MR16 LED Lamps
• 1 × TL-TRAN200-SS 200W Stainless Steel Transformer
• 1 × 250 ft roll of 12/2 Low-Voltage Landscape Wire
• 24 × Waterproof Wire Connectors
• 1 × TL-PHOTOCELL
• 1 × TL-MECHTIMER Mechanical Timer
• 1 × Wire Cutter

Key Features

• Layered Fixture Mix: Well, uplight, and path fixtures can address different landscape zones in one system.
• Directional and Area Lighting: Aim light at trees and architecture while separately illuminating walkways and planting areas.
• 200W Transformer: Centralizes low-voltage power for the planned lighting layout.
• Control Options Included: Photocell and mechanical timer are included for automatic operation.

Best For / Common Uses

• Trees, facades, and architectural features
• Walkways and garden edges
• Planting beds and landscape focal points
• Mixed residential landscape-lighting plans

System Specifications

• System Type: 12V low-voltage landscape lighting
• Fixture Mix: 6 well lights, 6 uplights, and 4 path lights
• Lamp Types: G4 and MR16 LED, in the quantities listed above
• Transformer: 200W stainless steel
• Wire: 250 ft of 12/2 low-voltage landscape wire
• Controls: Photocell and mechanical timer

Planning & Installation Notes

• Lay out fixture locations before trenching or mounting so wire runs, fixture spacing, and transformer placement can be planned together.
• Plan voltage drop and transformer loading based on the total connected wattage, wire-run length, and the taps available on the included transformer.
• Use the included waterproof connectors to protect low-voltage splices from moisture and soil exposure.
• Confirm the transformer location and line-voltage connection requirements before installation, and follow applicable electrical codes and manufacturer instructions.

Frequently Asked Questions

What types of fixtures are included?

Combo #2 includes well lights, directional uplights, and path lights for a mixed lighting layout.

Can I use the different fixture types on separate wire runs?

The layout can be divided into runs as appropriate for the property and transformer. Plan total load, run length, voltage drop, and transformer taps before installation.

Are controls included?

Yes. The kit includes both a photocell and a mechanical timer.

Why Choose This Kit?

Combo #2 is built for a mixed-property layout where paths, trees, and landscape features all need different treatment. It provides a broader design toolkit than a single-style kit while keeping the major low-voltage system components together.
