Total Light® Up Light Kit Complete Landscape Lighting Kit

Product Overview

The Total Light Up Light Complete Landscape Lighting Kit is a dedicated six-fixture package for highlighting trees, architectural details, columns, walls, and other vertical focal points. The included Blaze brass uplights use adjustable directional positioning so each beam can be aimed where the landscape or architecture needs emphasis.

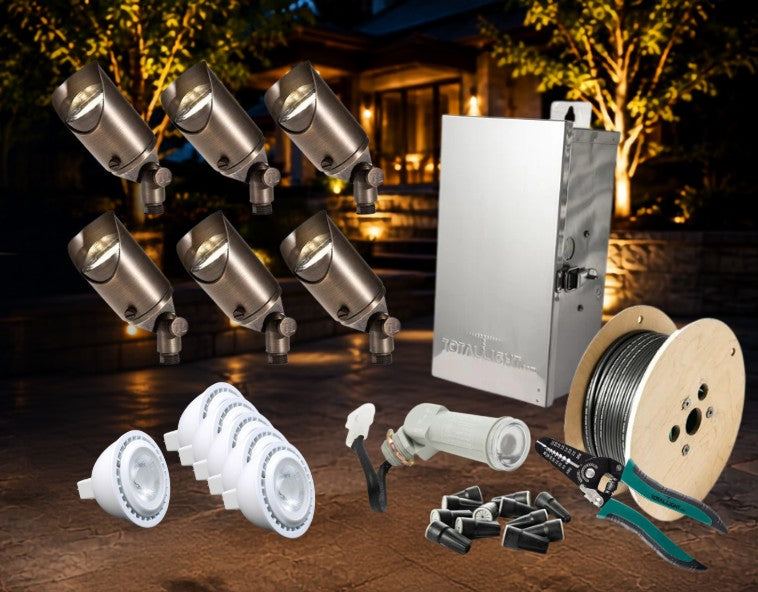

The kit includes six compatible MR16 LED lamps, six ground stakes, a 100-watt stainless steel transformer, 250 feet of 12/2 low-voltage wire, waterproof connectors, a photocell, and a wire cutter. It is a practical way to start an uplighting project with the major system components selected together.

What's Included

• 6 × TL-UL300-CB Blaze Brass Up Lights
• 6 × TL-MR16-5W-40D-30 MR16 LED Lamps
• 6 × TL-GSTAKE2 Ground Stakes
• 1 × TL-TRAN100-SS 100W Stainless Steel Transformer
• 1 × 250 ft roll of 12/2 Low-Voltage Landscape Wire
• 12 × Waterproof Wire Connectors
• 1 × TL-PHOTOCELL
• 1 × Wire Cutter

Key Features

• Dedicated Uplighting Package: Six directional fixtures are intended for vertical focal points rather than general path illumination.
• Adjustable Beam Direction: Fixture aiming lets you place light on trees, walls, columns, and architectural details.
• Solid Brass Fixtures: Brass construction suits long-term outdoor exposure.
• Replaceable MR16 Lamps: Drop-in lamps simplify future servicing or changes in lamp output.

Best For / Common Uses

• Mature and ornamental trees
• House facades and stonework
• Columns and architectural details
• Garden sculpture and focal points

System Specifications

• System Type: 12V low-voltage landscape lighting
• Fixture Mix: 6 brass directional uplights
• Lamp Type: MR16 LED
• Transformer: 100W stainless steel
• Wire: 250 ft of 12/2 low-voltage landscape wire
• Controls: Photocell

Planning & Installation Notes

• Lay out fixture locations before trenching or mounting so wire runs, fixture spacing, and transformer placement can be planned together.
• Plan voltage drop and transformer loading based on the total connected wattage, wire-run length, and the taps available on the included transformer.
• Use the included waterproof connectors to protect low-voltage splices from moisture and soil exposure.
• Confirm the transformer location and line-voltage connection requirements before installation, and follow applicable electrical codes and manufacturer instructions.

Frequently Asked Questions

Are ground stakes included?

Yes. Six TL-GSTAKE2 ground stakes are included, one for each uplight.

Can the fixtures be aimed after installation?

Yes. The directional uplights can be adjusted to refine beam placement on trees, walls, and other focal points.

Are the MR16 lamps replaceable?

Yes. The fixtures use replaceable MR16 LED lamps.

Why Choose This Kit?

If your project is primarily about highlighting vertical features, this package keeps the design focused. Six brass uplights, matching lamps, stakes, wire, transformer, connectors, and control components make it a straightforward dedicated uplighting system.
