Total Light® Up Light and Path Light Combo #1 Complete Landscape Kit

Product Overview

The Total Light Up Light and Path Light Combo #1 is a compact, balanced eight-fixture kit with four Blaze brass uplights and four Boca brass path lights. The equal fixture mix makes it a useful starting point for projects that need both directional accent lighting and comfortable illumination along walks or garden edges.

The package includes the matching listed LED lamps, ground stakes, a 100-watt stainless steel transformer, 250 feet of 12/2 low-voltage wire, waterproof connectors, a photocell, and wire cutter. It keeps a smaller mixed lighting project organized without requiring each system component to be selected separately.

What's Included

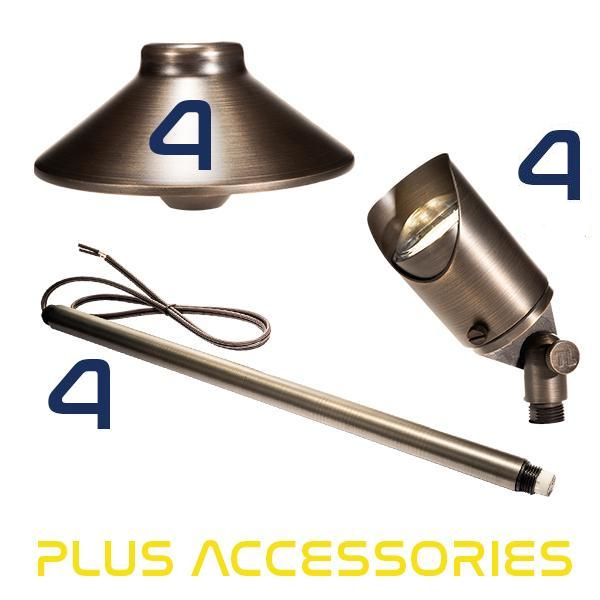

• 4 × TL-UL300-CB Blaze Brass Up Lights
• 4 × TL-PL-6-18-CB Boca Brass Path Lights
• 8 × TL-GSTAKE2 Ground Stakes
• 4 × TL-G4-2.5W-30 G4 LED Lamps
• 4 × TL-MR16-5W-40D-30 MR16 LED Lamps

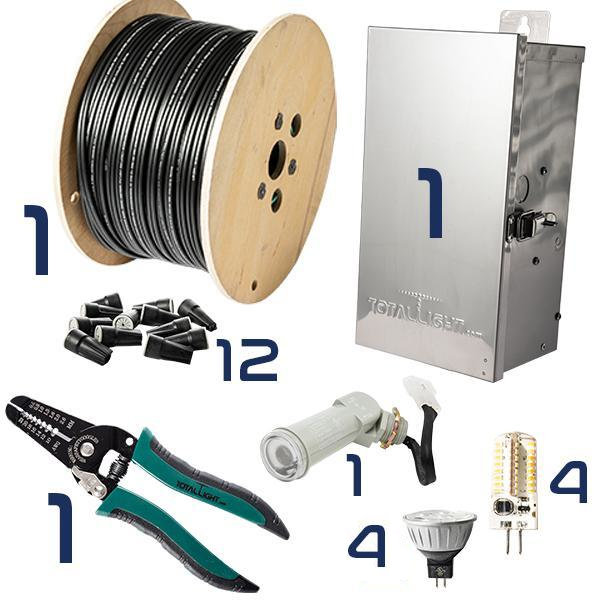

• 1 × TL-TRAN100-SS 100W Stainless Steel Transformer
• 1 × 250 ft roll of 12/2 Low-Voltage Landscape Wire
• 12 × Waterproof Wire Connectors
• 1 × TL-PHOTOCELL
• 1 × Wire Cutter

Key Features

• Balanced Fixture Mix: Four uplights and four path lights divide the system evenly between focal-point and pathway lighting.
• Compact Complete System: A manageable eight-fixture layout for smaller properties or focused lighting zones.
• Brass Fixtures: Both path and directional fixtures use brass housings intended for outdoor use.
• Replaceable LED Lamps: G4 and MR16 lamps can be serviced independently of the fixtures.

Best For / Common Uses

• Front entries and short walkways
• Small garden and foundation landscapes
• Trees paired with nearby path lighting
• Compact patio and outdoor-living approaches

System Specifications

• System Type: 12V low-voltage landscape lighting
• Fixture Mix: 4 uplights and 4 path lights
• Lamp Types: MR16 and G4 LED
• Transformer: 100W stainless steel
• Wire: 250 ft of 12/2 low-voltage landscape wire
• Controls: Photocell

Planning & Installation Notes

• Lay out fixture locations before trenching or mounting so wire runs, fixture spacing, and transformer placement can be planned together.
• Plan voltage drop and transformer loading based on the total connected wattage, wire-run length, and the taps available on the included transformer.
• Use the included waterproof connectors to protect low-voltage splices from moisture and soil exposure.
• Confirm the transformer location and line-voltage connection requirements before installation, and follow applicable electrical codes and manufacturer instructions.

Frequently Asked Questions

How is Combo #1 balanced?

It includes four uplights and four path lights, giving equal fixture counts for directional and pathway lighting.

Are ground stakes included?

Yes. Eight TL-GSTAKE2 ground stakes are listed with the kit.

Can this system be expanded later?

Expansion may be possible if the transformer has remaining capacity and the added load, wire runs, and voltage drop are planned appropriately.

Why Choose This Kit?

Combo #1 is a straightforward entry into layered landscape lighting. The equal split between path and uplight fixtures makes it easy to give a small property both practical walkway illumination and visual emphasis on trees or architecture.
