Product Overview

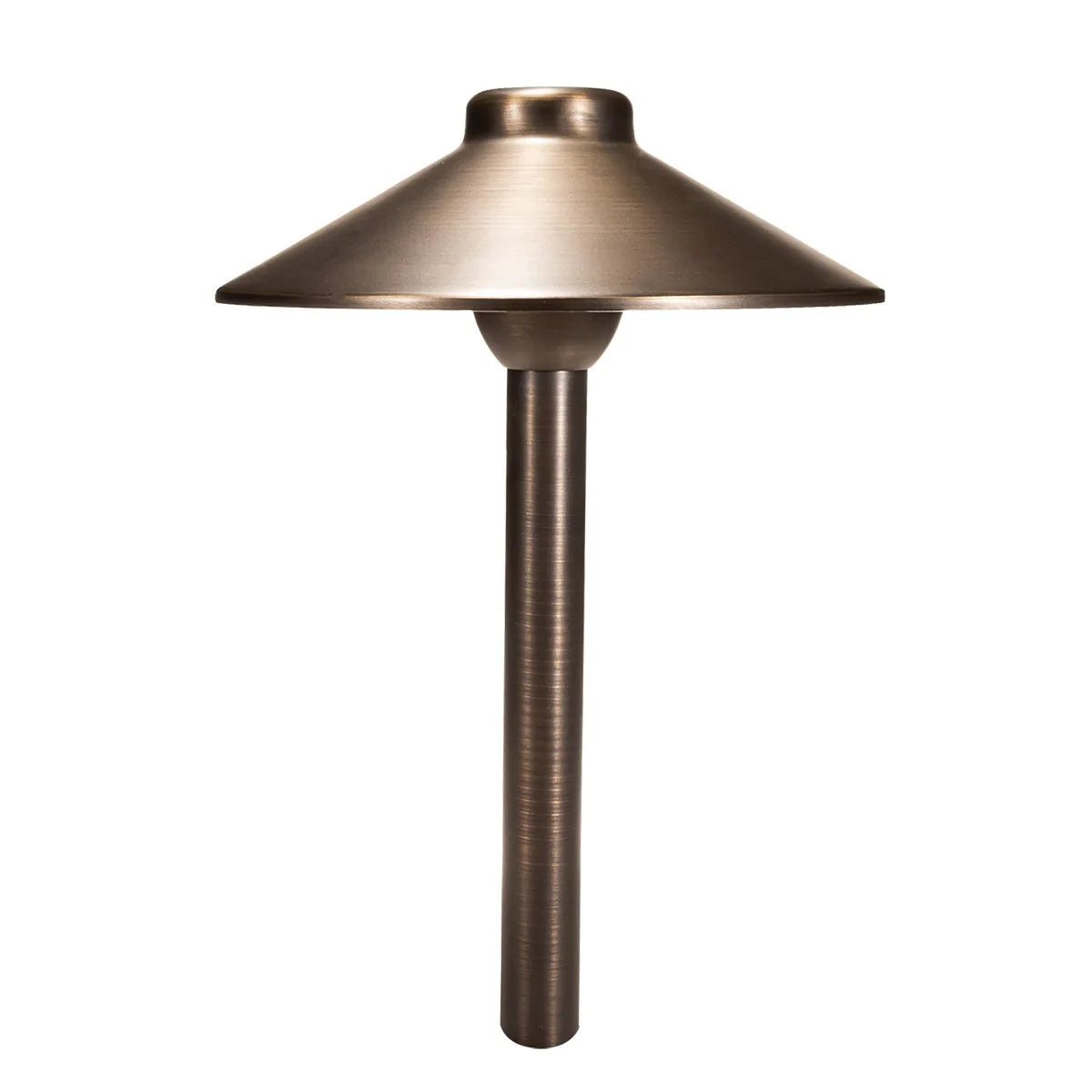

The Total Light TL-PL-8-18-CB-50 is a 50-piece bulk pack of Boca solid-brass path lights for larger landscape-lighting projects, contractor installations, commercial properties, and multi-zone residential systems. Each fixture uses the same 8-inch shade and 18-inch stem configuration as the single TL-PL-8-18-CB, providing soft downward-facing illumination for walkways, garden paths, planting beds, patios, driveway borders, steps, stonework, and other frequently used outdoor areas.
Each Boca fixture is constructed from solid brass with a Classic Brass finish. The broad shade helps spread light over the ground while the ceramic white underside helps reflect and distribute the lamp output more evenly. The 18-inch stem raises the shade above surrounding plants and groundcover, and each fixture is supplied with a TL-GSTAKE2 ground stake for installation in soil and landscaped beds.
These fixtures use replaceable 12-volt LED G4 bi-pin lamps rated at no more than 10 watts per fixture. Lamps and the low-voltage transformer are sold separately, allowing the installer to choose an appropriate light output and color temperature for the project. Each fixture includes a 36-inch section of 18/2 direct-burial lead wire plus both frosted and clear glass lenses.
Key Features
- 50 matching Boca fixtures: Bulk quantity for larger path-lighting installations.
- Solid brass construction: Built for outdoor landscape-lighting applications.
- Wide 8-inch shade: Helps direct illumination over a broader ground area.
- Ceramic white shade underside: Helps reflect and distribute lamp output more evenly.
- Replaceable G4 lamp design: Lets the installer select a compatible lamp output and color temperature.
- Two glass lenses per fixture: Frosted and clear lenses are included.
- Installation components included: Each fixture includes a TL-GSTAKE2 ground stake and attached lead wire.
Common Uses
- Walkways, sidewalks, and garden paths
- Driveway borders and entry areas
- Patios and outdoor seating areas
- Planting beds and flower gardens
- Steps and frequently traveled landscape areas
- Commercial and residential projects requiring multiple matching path lights
Technical Specifications
- Model: TL-PL-8-18-CB-50
- Pack Quantity: 50 fixtures
- Fixture Type: Low-voltage path light
- Operating Voltage: 12 volts
- Construction: Solid brass
- Finish: Classic Brass
- Lamp Type: LED G4, sold separately

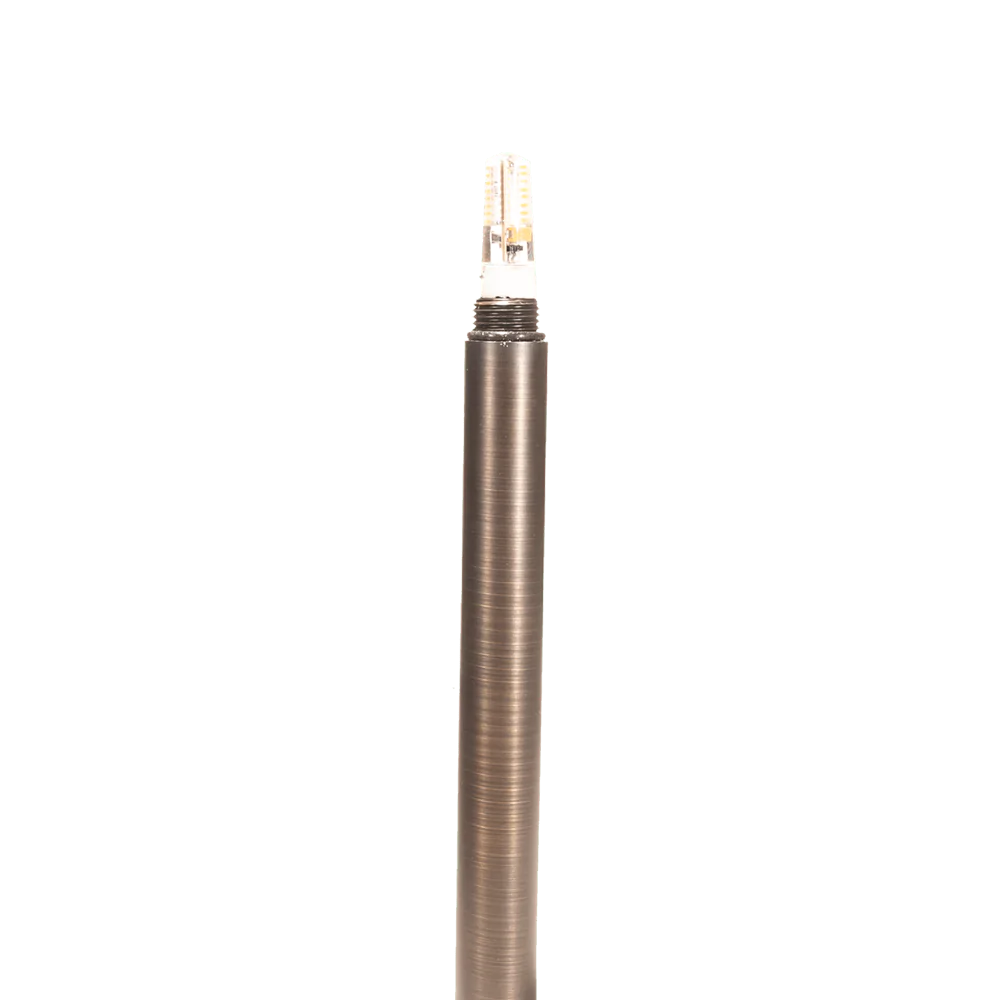

- Socket: Ceramic G4 bi-pin base with nickel contacts and coated wire lead
- Maximum Lamp Rating: 10 watts per fixture
- Lead Wire: 36-inch 18/2 direct-burial lighting wire per fixture
- Lens: Frosted and clear glass lenses included

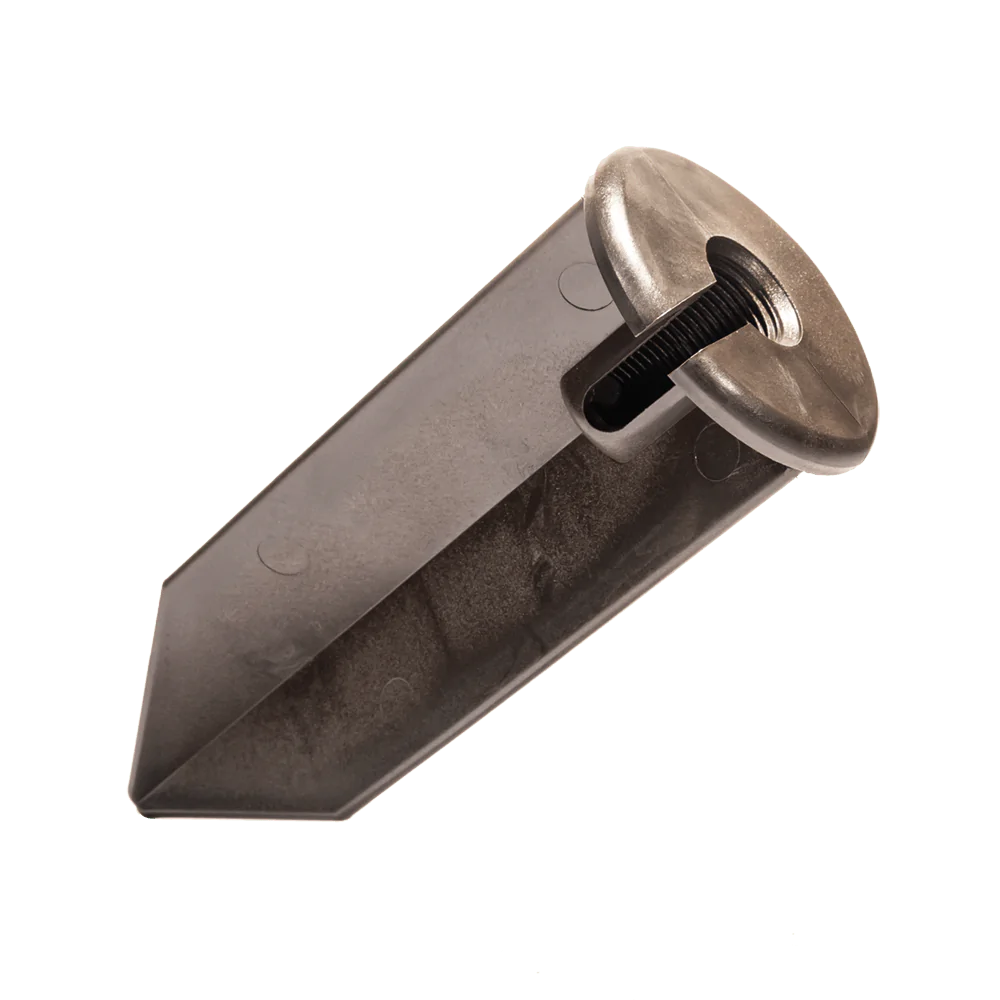

- Mounting: TL-GSTAKE2 ground stake included with each fixture
- Certification: ETL
Dimensions

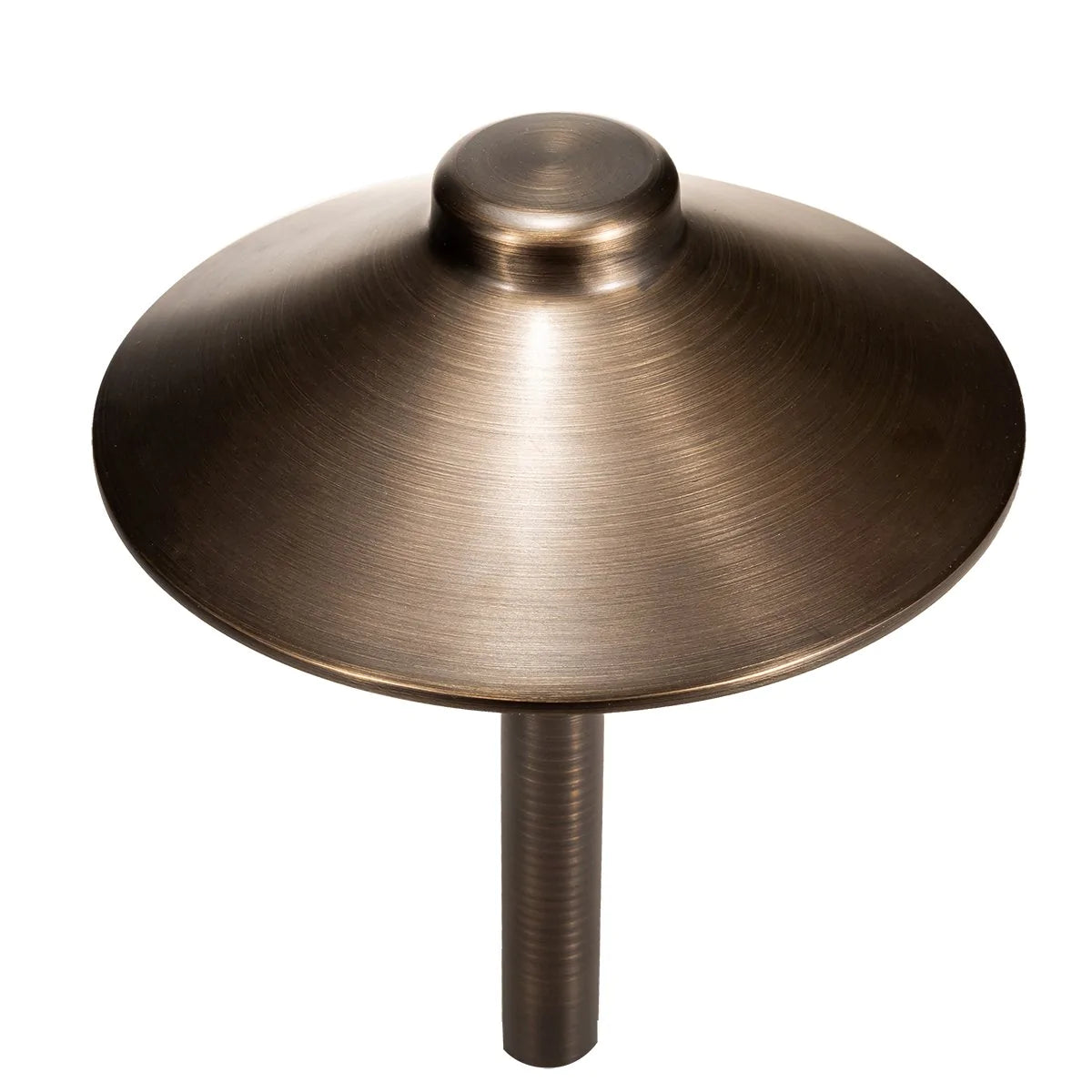

- Nominal Shade Diameter: 8 inches

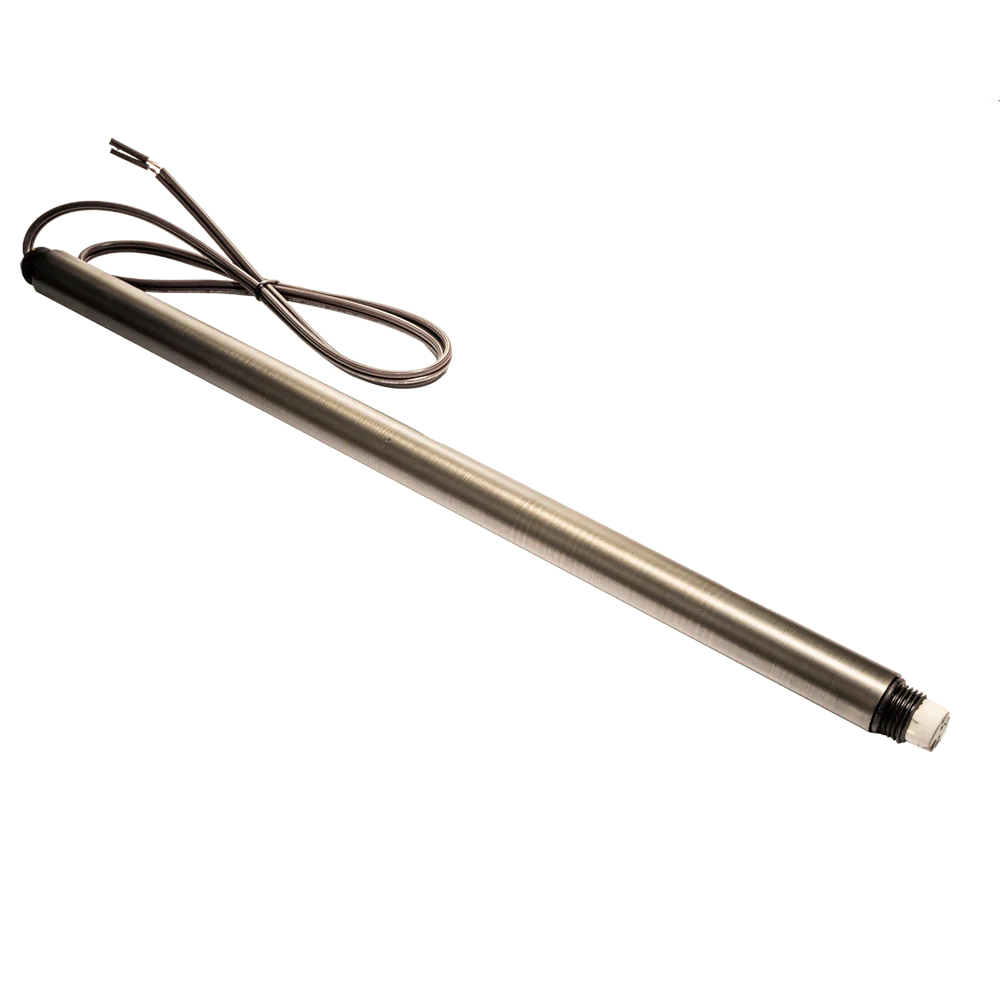

- Nominal Stem Length: 18 inches
- Approximate Overall Height: 21.19 inches
- Approximate Shade Diameter: 7.80 inches
- Approximate Stem Diameter: 0.99 inch
Refer to the linked 8-inch Boca specification sheet below for the complete dimensional drawing.
Lamp and System Compatibility
Each TL-PL-8-18-CB fixture requires a compatible 12-volt LED G4 bi-pin lamp and a properly sized low-voltage landscape-lighting transformer. Lamps and transformer are not included with this 50-piece pack.
View compatible Total Light G4 LED lamps
Installation and Use Notes
- Connect each attached lead wire to compatible low-voltage landscape-lighting cable.
- Size the transformer for the combined load of all installed lamps and the complete lighting system.
- Select compatible LED G4 lamps rated at no more than 10 watts each.
- Position each shade so illumination is directed toward the intended path or landscape area.
- Follow transformer, cable, connector, and lamp instructions during installation.
What Is Included?
- 50 TL-PL-8-18-CB Boca path-light fixtures
- 50 8-inch brass shades
- 50 18-inch stems
- 50 frosted glass lenses
- 50 clear glass lenses
- 50 TL-GSTAKE2 ground stakes
- Attached 36-inch lead wire on each fixture
Not included: G4 LED lamps, landscape-lighting cable, wire connectors, and low-voltage transformer.
Product Specification Sheet
Open the correct 8-inch Boca specification sheet for the complete dimensional drawing, electrical requirements, included components, and fixture details.
View the TL-PL-8-18-CB specification sheet
Frequently Asked Questions
Does this 50-piece pack include G4 lamps?
No. Compatible 12-volt LED G4 bi-pin lamps are required and sold separately. Each selected lamp must not exceed the fixture’s 10-watt maximum rating.
Are ground stakes included?
Yes. Each of the 50 Boca fixtures includes a Total Light TL-GSTAKE2 ground stake for installation in soil or landscaped beds.
What transformer is required for 50 fixtures?
The transformer should be sized for the combined wattage of the installed lamps, cable length, wire gauge, and overall layout. The fixture count alone does not determine the correct transformer size.
Is this the same fixture as the single TL-PL-8-18-CB?
Yes. This bulk pack contains 50 fixtures in the same 8-inch shade and 18-inch stem configuration, packaged for larger projects.
Why Choose Total Light?
This 50-piece Boca pack provides a consistent solid-brass fixture configuration across larger path-lighting projects while retaining replaceable lamps, included mounting hardware, and the same product documentation used for the individual TL-PL-8-18-CB.
